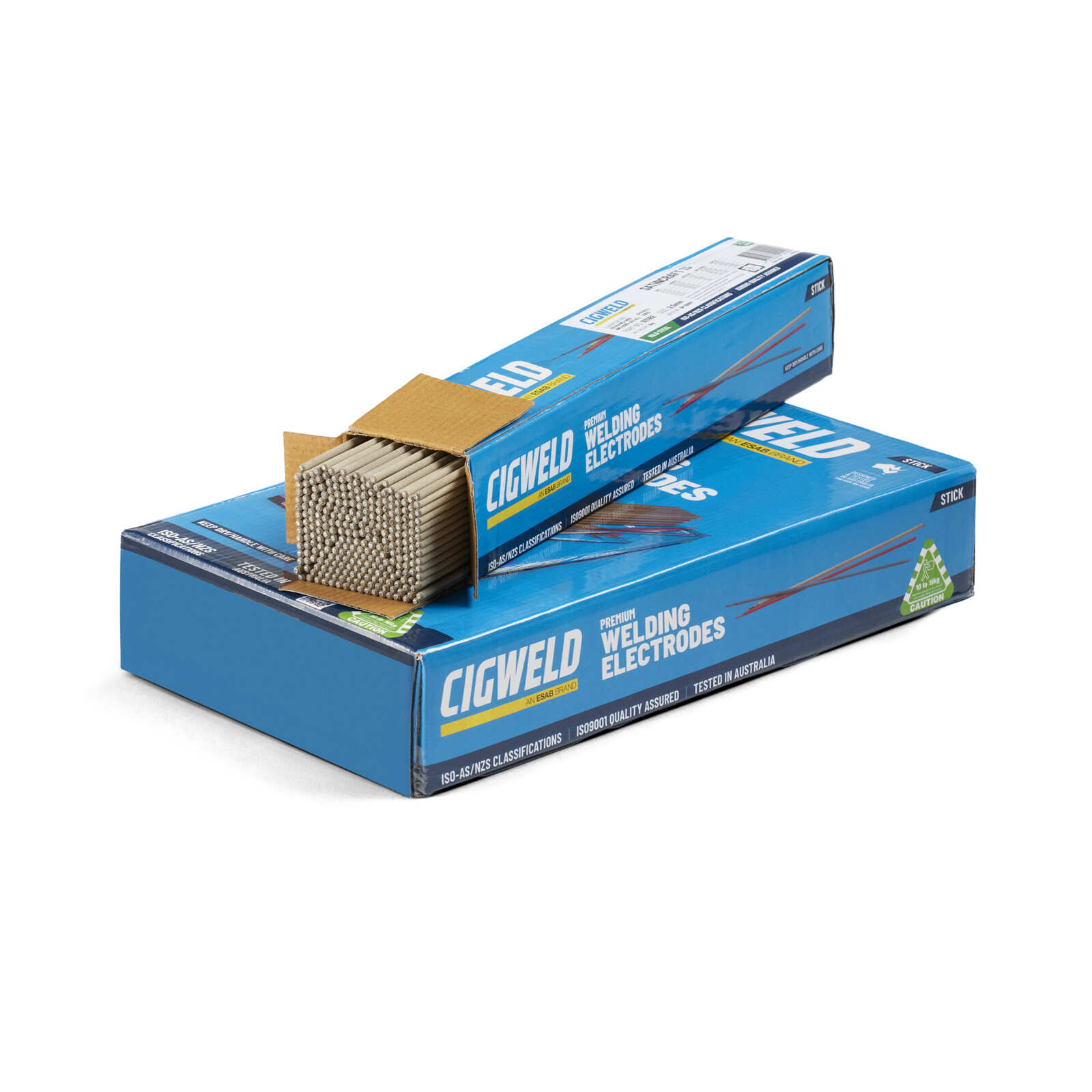

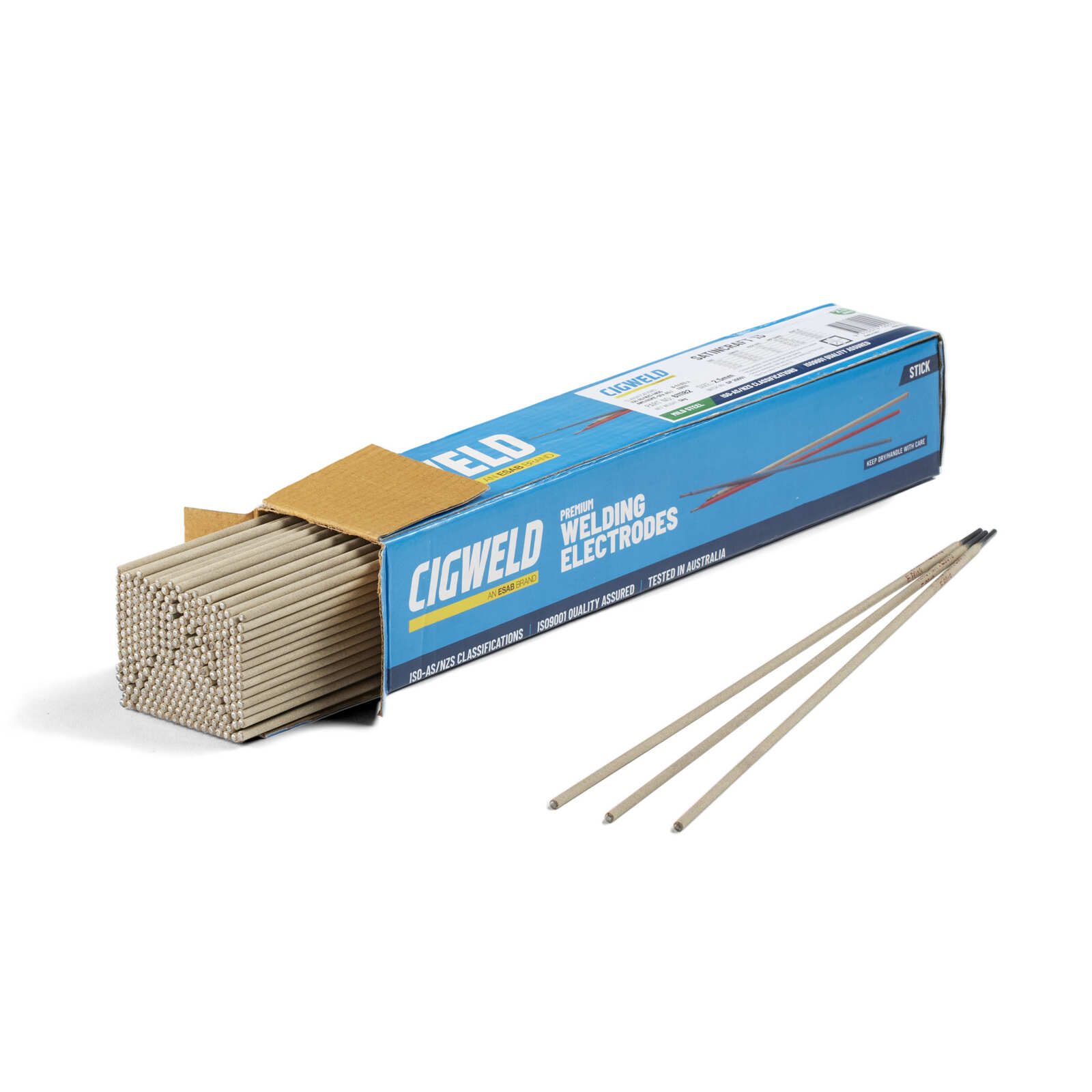

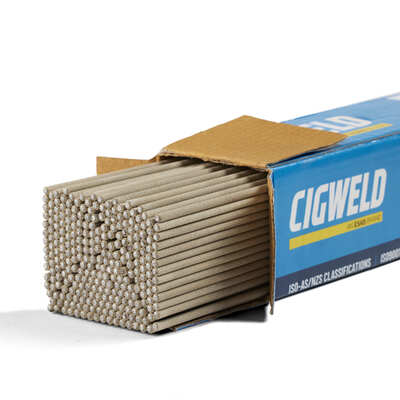

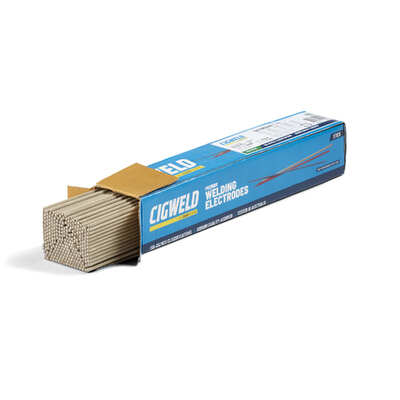

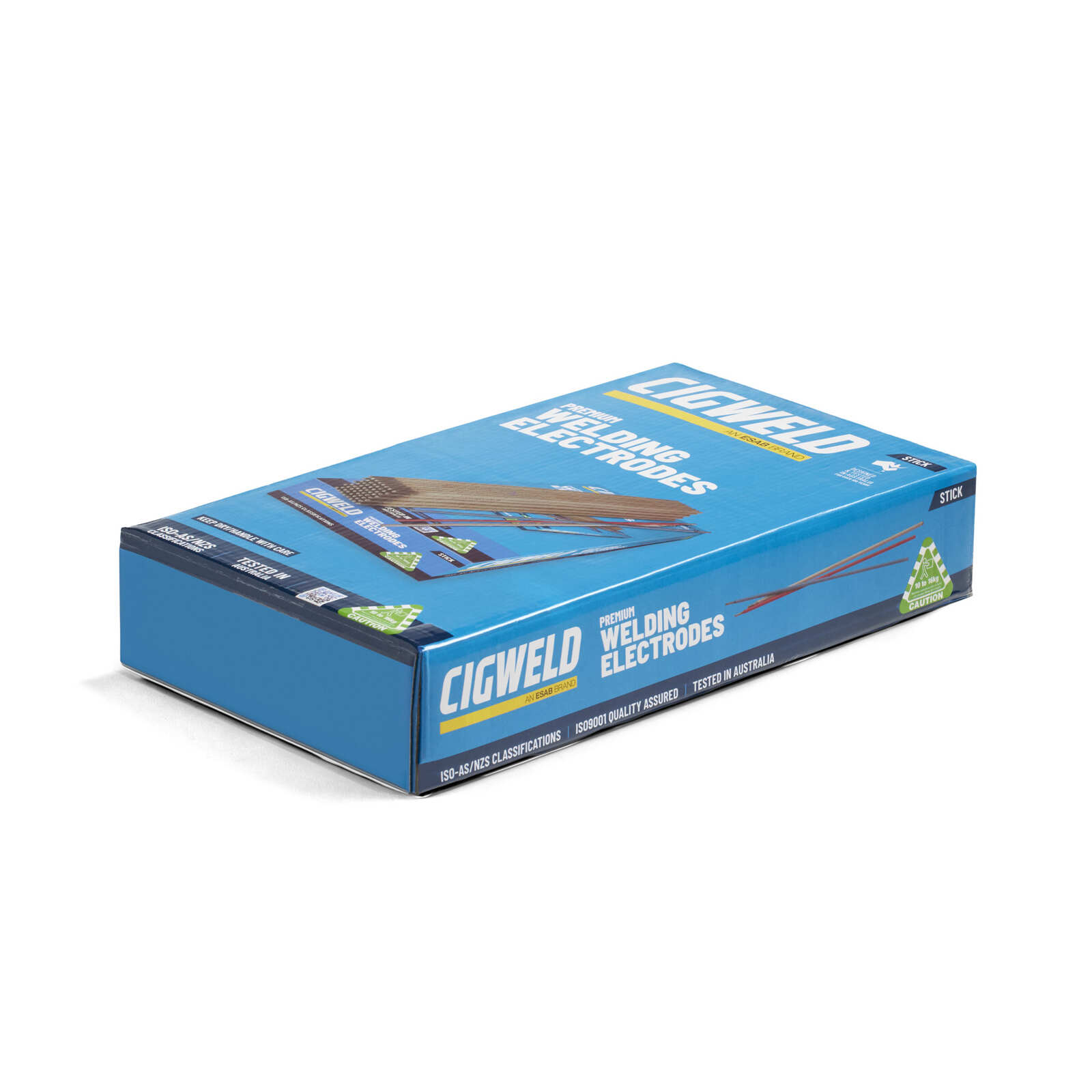

Ferrocraft 21 Iron Powered Electrode 3.2mm 5 Kg Cigweld 611243

Ferrocraft 21 is a popular rutile type, medium iron powder electrode It offers many features including smooth stable AC / DC running on low O.C.V. welding machines, excellent fillet shapes in all welding positions (including vertical – down/up and overhead) and a higher electrode efficiency of 110%.

• Rutile Type, Medium Iron Powder Electrode
• Excellent Operator Appeal
• Versatile – All Positional Capabilities
• Easy Striking – Hot or Cold
• Ideal for Vertical Down Fillet Welding
• Reliable Impact Toughness to -20

Classifications
ISO AS/NZS 4855: B E4914 A U
AWS/ASME-SFA A5.1: E7014

Applications
Suitable for 'on site' repair, maintenance and fabrication jobs where the iron powder addition gives improved useability

Welding Positions
All Positional

Typical All Weld Metal Analysis
C: 0.06%
Mn: 0.65%
Si: 0.30%

Typical All Weld Mechanical Properties
Yield Stress 430 MPa
Tensile Strength 500 MPa
Elongation 30%
CVN Impact Values. 90J av @ -20°C

Part Number/SKU: 611243
