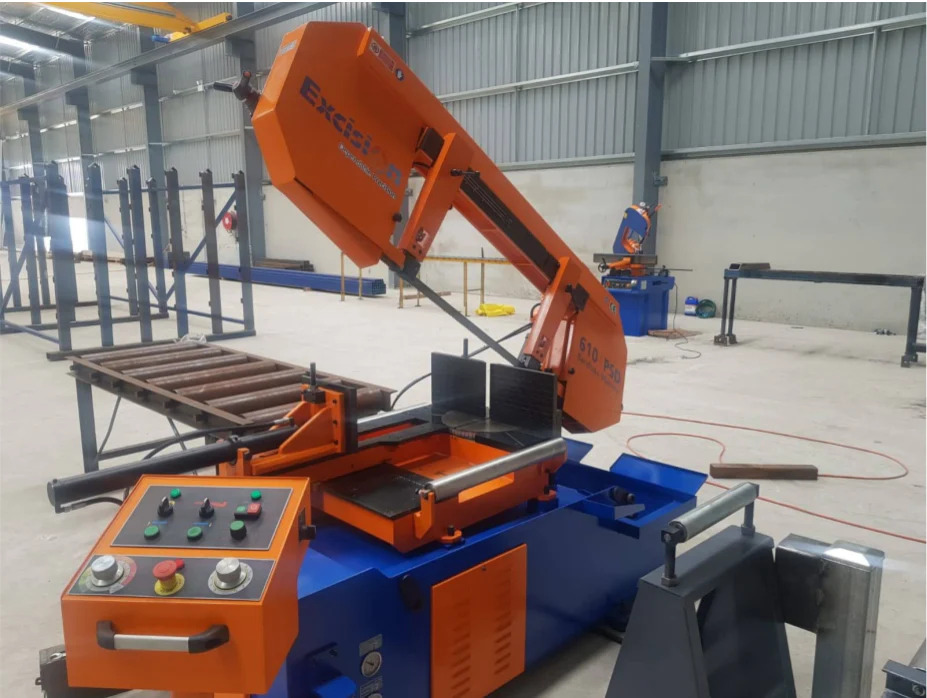

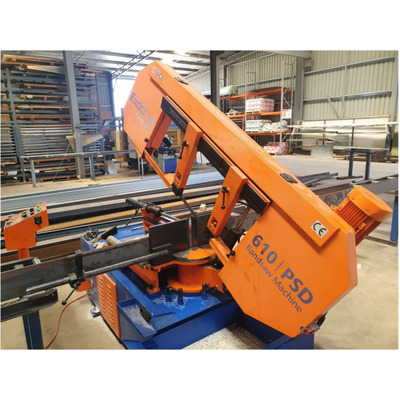

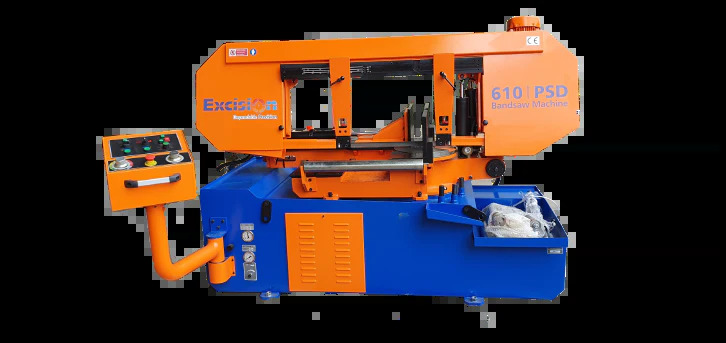

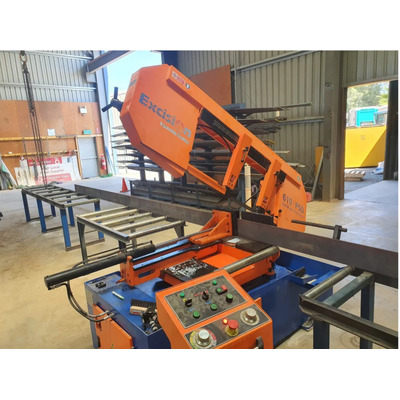

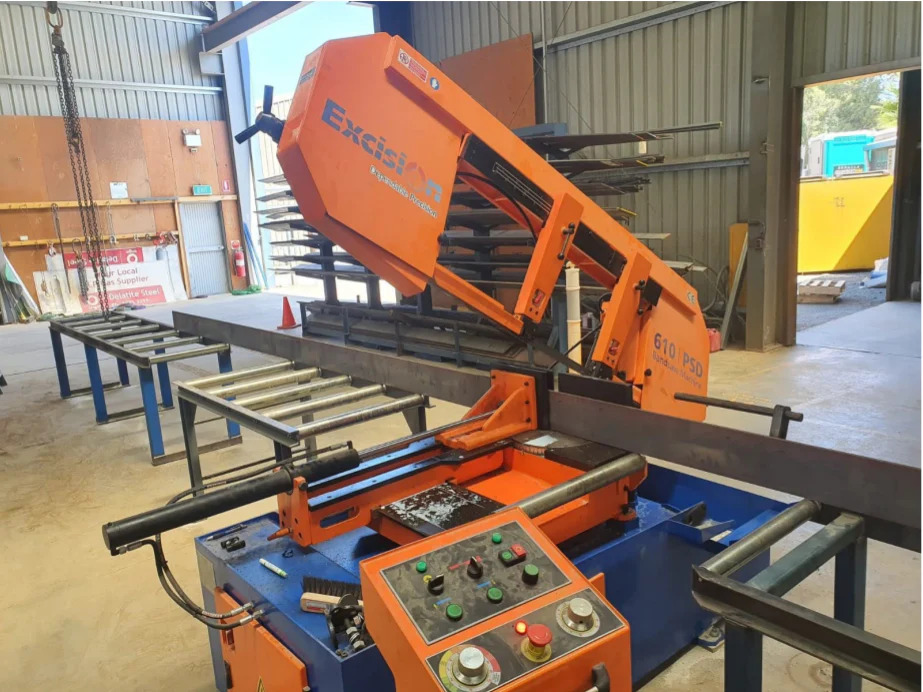

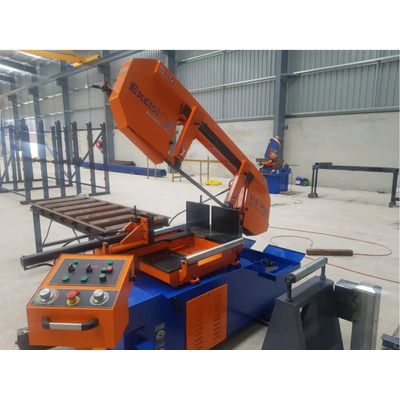

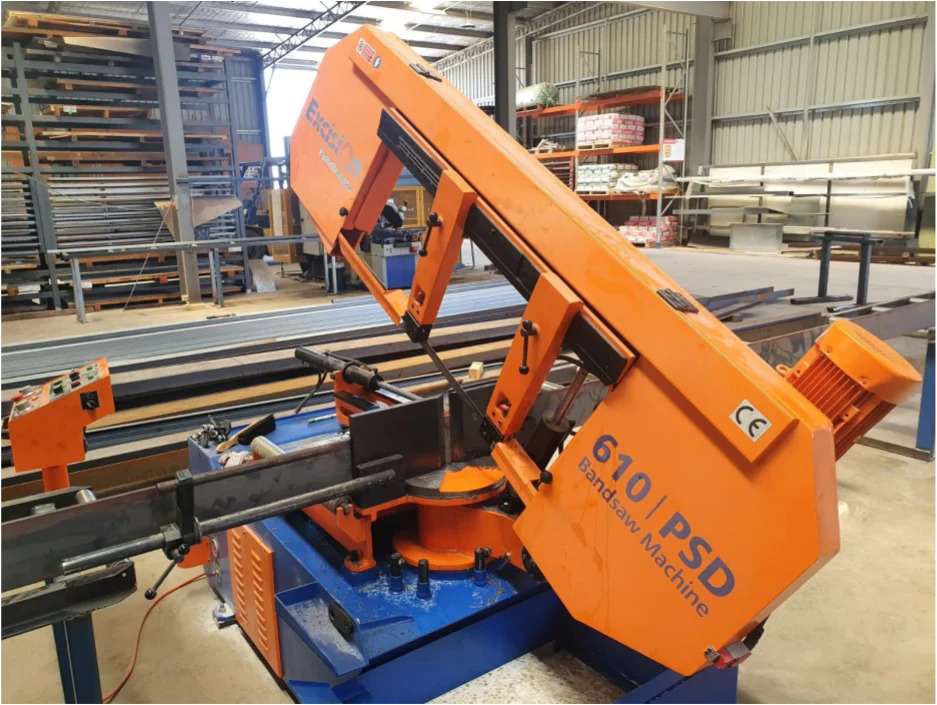

Excision 610PSD SEMI-AUTO Bandsaw Machine 3 Phase 401610PSD3

FEATURES:

  • Manual Control Panel - Only control panel with buttons.
  • Inverter - Provides to adjust blade speed up to workpiece diameter, thickness and hardness.
  • Hydraulic Vise - Pressure, clamping period and clamping time can be adjusted.
  • Swarf Brush - Removes swarfs to keep clean the wheels and blade.
  • Hydramechanical Blade Tensioning - Tensioning period and tensioning time can be adjusted. So blade does not relax and curve cutting gets prevented.
  • Blade Bedding with Carbide and Bearings
  • Rotating Table
  • 60 cm Long Material Stopper System
  • Bevel Helical Gearbox
  • Moveable Guide Arms
  • Adjustable Bow Down Speed
  • Adjustable vise Tension
  • Easy Readable Angle Ruler

Technical Specification:

  • Main Motor : 4 kW
  • Gearbox : Bevel Helical PKD 2390 High Efficiency
  • Hydraulic Motor : 0,37 kW
  • Hydraulic Tank Capacity : 8 Liter
  • Coolant Motor : 0,12 kW
  • Coolant Tank Capacity : 30 liters
  • Blade Speed : 25-90 m/min
  • Blade Dimensions : 4780 x 34 x 1,1 mm
  • Machine Weight : 1.350 kg
  • Machine Dimensions : 1400 x 2350 x 1500 mm
  • Table Height : 750 mm

Part Number/SKU: 401610PSD3

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 401610PSD3
Brand Excision
Shipping Weight 100.0000kg
Shipping Width 0.800m
Shipping Height 1.000m
Shipping Length 2.000m
Shipping Cubic 1.600000000m3
Unit Of Measure ea
