Excision 310PGD Bandsaw Machine 415V Double Mitre 401310PGD3

310 PGD Bandsaw Machine This bandsaw has been designed for rugged and tough conditions of a fabrication and engineering workshop.


Benefits:

  • Control Panel – easy to reach and easy to control
  • Coolant Pump - fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both carbide guide assemblies
  • Powerful motor with variable speed 20-90 m/min
  • Heavy Duty direct dive gearbox – built tough – can cut all day non-stop
  • Blade guides with rollers and carbide pads provide precise support for the blade guarantee longer blade life.
  • Variable speed – giving you a clean and fast cut for all materials, from aluminium to stainless steel to induction harden chrome bar
  • Blade brush to keep the blade clean from swarf
  • Low working height - only 730mm
  • Height adjustment switch to save you time when cutting smaller jobs

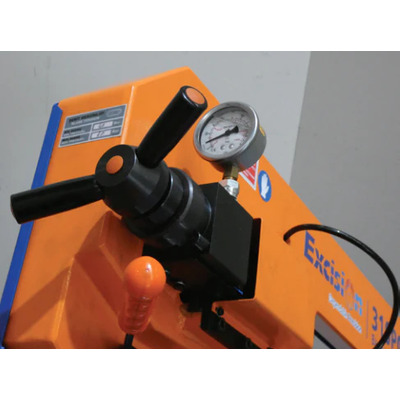

  • Hydromechanic Blade Tension – gives you the correct amount of blade tension, critical for straight cuts and longer blade life
  • Material Limit Shaft – machines stops once the cut is completed
  • Automatic blade break protection
  • Constructed in heavy gauge steel, giving you a strong rigid saw frame, providing a high degree of accuracy when cutting.

Technical Specification:

  • Motor - 1.5kW (415v - 3phase)
  • Blade Speed - 25 - 90 m/min (variable)
  • Blade Dimensions - 3150 x 27 x 0.9 mm
  • Machine Weight - 480kg
  • Machine Dimensions - 750 x 1650 x 1150 mm
  • Table Height - 730 mm
Cutting Capacity
45° 60° -45°
250mm 190mm 120mm 180mm
250mm 190mm 120mm 150mm
250 x 310mm 190 x 250mm 120 x 140mm 100 x 250mm




Part Number/SKU: 401310PGD3
