SPECIFICATIONS

INPUT VOLTAGE (VAC) - 230V or 120V, 50/60Hz, 180W, 0.5A
cutting area - 3000×1500mm / 3050×1525mm (10×5FT)
Max. position speed - up to 3000mm/min (118ipm)
vertical stroke 100mm - (4 inches) with motorized lifter
OXY-FUEL cutting range up - to 100MM (4 inch)
plasma cutting range up - to 35mm (1 3/8 inch)

plasma interface - yes
torch height control - arc voltage height control
PACKAGING 2 BOXES
total weight 99Kg

COMPACT
PORTABLE
ECONOMICAL

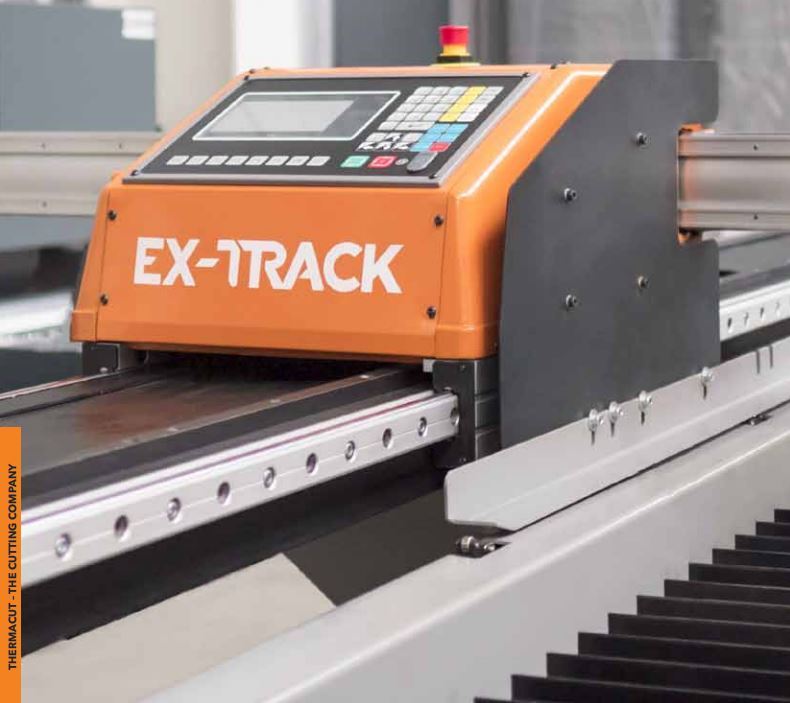

Portable CNC cutting system that can be easily transported and assembled where you
need it. Precision dual side linear guide rails offers stability and outstanding accuracy in
oxy‑fuel or plasma cutting. Quick and easy manual positioning on a rack equipped with
pinion drives in combination with a motorized torch lifter gives you an unbeatable system.
For the best cutting results the EX-TRACK® CNC has an arc voltage height control with initial
touch sensing combined with a crash sensor designed for plasma cutting.
The EX-TRACK® CNC can operate both plasma and oxy-fuel cutting torches with great results.
Thanks to two types of torch holders you can interchange the type of cutting based on your
needs. Versatility is one of its biggest advantages.

Plasma Machine Not Included.

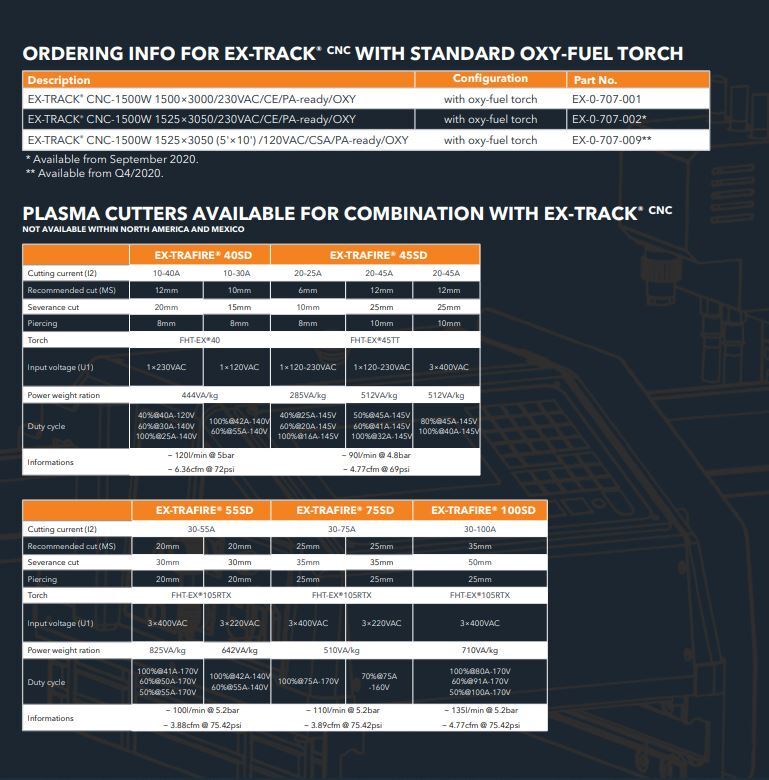

Part Number/SKU: T-EX-0-707-002

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T-EX-0-707-002
Brand ThermaCut Ex-Trafire
Shipping Weight 110.0000kg
Shipping Width 0.600m
Shipping Height 0.500m
Shipping Length 0.650m
Shipping Cubic 0.195000000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
