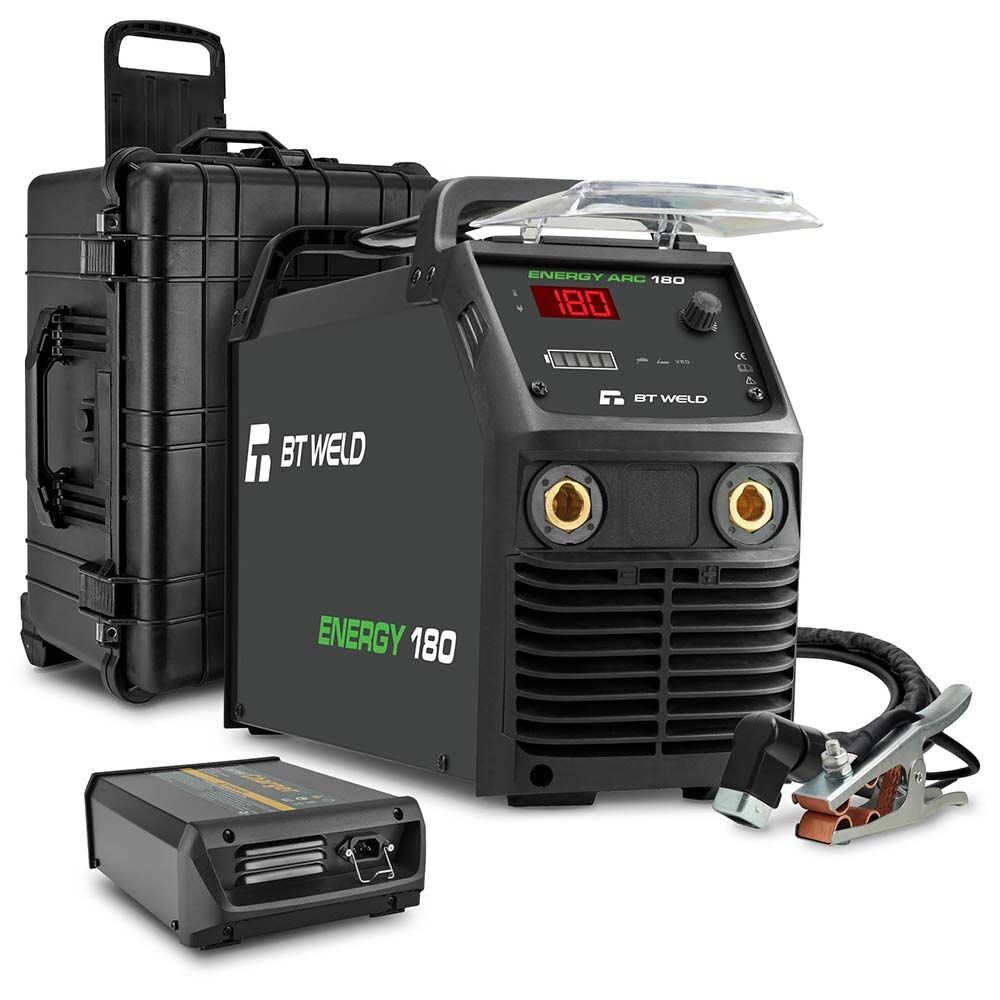

Energy ARC 180 Inverter Welder 240V BT Weld 651180

DESCRIPTION:

  •  Duty Cycle: 10% @ 180A
  •  Plate Thickness: Max. 8mm
  •  Material: Mild Steel, Stainless, Cast Iron, Copper

FEATURES:

  • 180A Output, 74V 8A Charger
  • Portable & Cordless
  • Easy to Handle & Transport
  • Digital LED Display
  • Battery Indicator
  • 740WH Battery Capacity
  • VRD (Voltage Reduction Device)

PROCESS:

  • STICK (MMA) DC
  • TIG LIFT DC

SPECIFICATIONS:

Primary Input Power 1 Phase 240V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min 10% @ 180A
 20% @ 130A
 100% @ 60A
VRD 14 V
Battery Type Lithium Battery
Battery Capacity 740 ±5% WH
Battery Rated Voltage 74 V
Charging Current 8 A
Charging Time 100 min
Electrode Diameter Range 2.5 – 4.0mm
Protection / Insulation Class IP21S / S
Thermal Overload Yes
Dimensions / Weight L44 x W15 x H28 cm
Weight 11.5 kg
Part Number 651180

STANDARD PACKAGE INCLUSIONS:

  • BT Energy ARC 180 Inverter Welder 240V:   651180
  • Twist Lock Electrode Holder 3Mt:   500044
  • Earth Clamp 200Amp 3Mt:   500059
  • FC Battery Charger 240V:   -
  • Hard Case:  -

WELDING CAPABILITY:

       Electrode (Ø mm)                PCS                       Welding Current (A)
           2.5                  18                    75
           3.2                    8                    120
           4.0                    5                150-180




Part Number/SKU: 651180

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 651180
Brand BT Weld
Shipping Weight 15.0000kg
Shipping Width 0.150m
Shipping Height 0.290m
Shipping Length 0.440m
Shipping Cubic 0.019140000m3
Unit Of Measure ea
