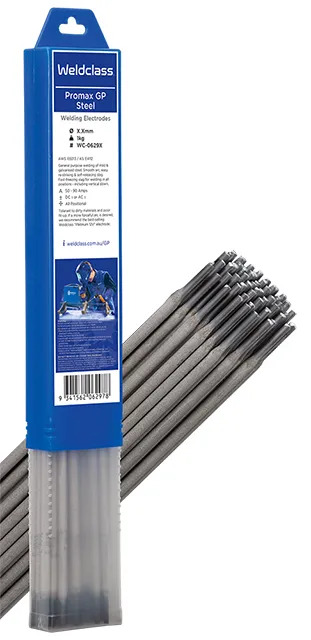

Electrodes Promax GP (General Purpose) 3.2mm x 350mm - 1kg Pkt Pkt Weldclass WC-06298

DESCRIPTION:
The Weldclass Promax GP is an easy-to-use, all-positional welding rod for mild & galvanized steels, supplied in a 1kg re-usable convenience pack to keep electrodes in good condition. Very smooth arc, easy re-striking & easy slag removal. Fast-freezing slag formula, for welding in all positions including vertical down. Tolerant to dirty materials and poor fit-up. Available in 2.0mm, 2.6mm & 3.2mm.
If a more forceful arc is desired, and for larger volume applications, we recommend the best-selling Weldclass Platinum 12V electrode.

KEY FEATURES:

• Smooth Arc, Easy Striking, Easy-to-remove Slag
• User Friendly: Tolerant to Dirty / Rusty Steel & Poor Fit Up
• All-Positional: Fast-Freezing Slag for fillet & butt welding in All Positions, including Vertical Down

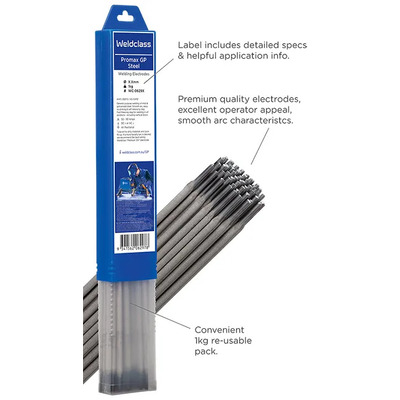

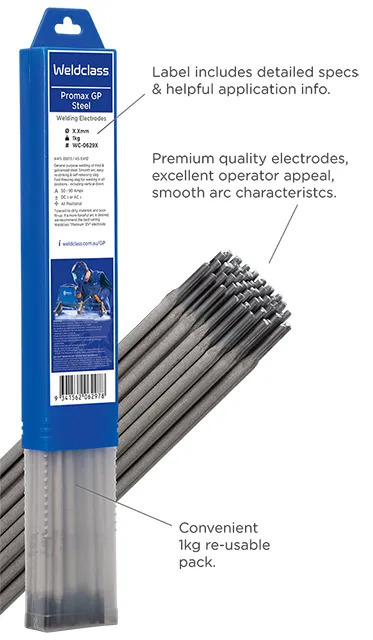

• Convenient 1kg re-usable pack

APPLICATION INFO:

• Ideal General Purpose electrode for fabrication, repair, fencing, light structural & more
• For Mild steel, Galvanized, Plate, Sheet & Tubular/RHS Steel

OPERATING INFO:

• Polarity: DC± or AC± (electrode + or -)
• Positions: All-positional
• Minimum recommended OCV (open circuit voltage): 45V

CLASSIFICATIONS:

• AWS specification A5.1 E6013
• AS/NZS 4855 – B-E43 13 A (Previous Classification AS/NZS 1553.1 E4112-0)

 TYPICAL PROPERTIES OF ALL WELD METAL:

• Tensile strength 490 Mpa (N\mm2)
• Yield strength 430 Mpa (N\mm2)
• Elongation 26%
• CVN Impact 82J @ 0c
• Composition %: C0.07 Mn0.45 Si0.41 P0.018 S0.010

Part Number/SKU: WC-06298
