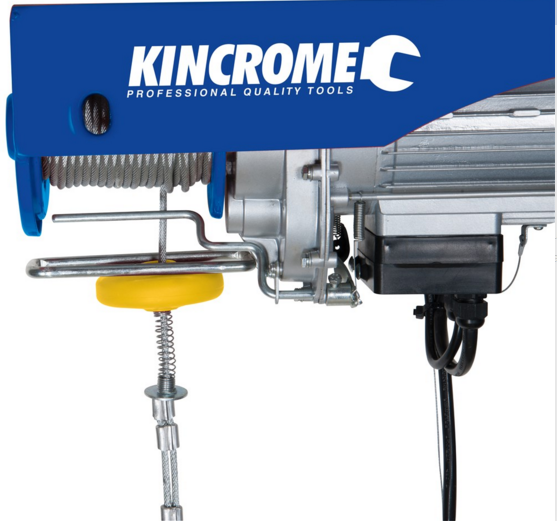

Electric 240V Lifting Hoist 125/250 kg - KP1201

  • 500W induction motor is quiet to operate and requires no servicing
  •  Heavy duty 3mm braided steel cable for safe hoisting applications
  •  Auto stop height lever automatically stops the hoist when the hook reaches maximum height
  • Max cable length lever automatically stops the hoist when the maximum hoisting cable length has unwound from the hoist spool
  •  Heavy duty steel construction provides longevity of your hoist
  •  Dual lifting weight capacity enables multiple lifting applications
    • 125KG with the single steel cable configuration
    •  250KG when configured with dual steel cables & the additional pulley assembly
  •  12m & 6m Max lifting distances depending on lifting set up configuration
    •  12m when used with the single steel cable configuration
    • 6m when configured with dual steel cables & the additional pulley assembly
  • ​​Dual lifting speed depending on lifting set up configuration
    • ​ 8m/min when configured with the single steel cable
    • 4m/min when configured with dual steel cables & the additional pulley assembly






Part Number/SKU: KP1201

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Technical Specifications:

Motor 500W
Capacity 125KG (Single Cable) 250KG (Dual Cable)
Lift Height 12M (Single Cable) 6M (Dual Cable)
Speed 8M/Min (Single Cable) 4M/Min (Dual Cable)
SKU KP1201
Barcode # 9312753023368
Brand Kincrome
Shipping Weight 11.0000kg
Shipping Width 0.200m
Shipping Height 0.300m
Shipping Length 0.400m
Shipping Cubic 0.024000000m3
Unit Of Measure ea
