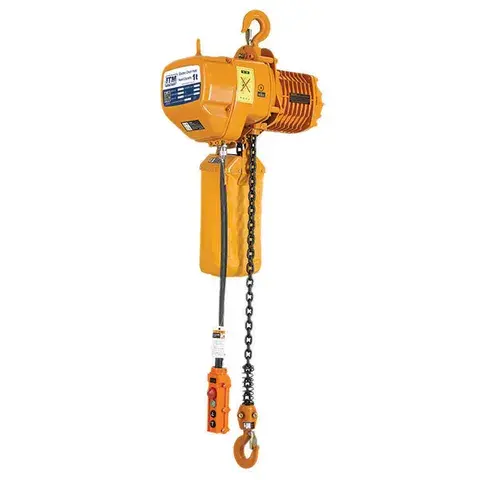

Electric Chain Hoist 415V 5 Tonne 3 Metre Lift ITM MT9003-05003

FEATURES:

• Japanese technology with dual braking system to ensure safe and reliable operation
• Dual Speed
• Compact and lightweight design
• Weight overload limiter for safety
• Dual-gear drive system providing smooth and quiet operation
• Three-phase, 415V motor
• Upper and lower limit switches to prevent chain runout
• ITM can alter chain length to your required length
• Tested & certified to AS 1418.2
• Test certificate & user manual supplied
• Replacement Chain 7.1mm TM9810-01607-1
• Replacement Chain 11.2mm TM9810-04011-2

SPECIFICATIONS:

• Rated Capacity: 5 Tonne
• Standard Lift: 3m
• Running Test Load: 62.5kN
• Motor: 3000W 415V 3P
• No. of Chain Drops: 2
• Chain Type: Grade 80 11.2mm
• Lift Speed: 2.7 & 0.9m/min
• Net Weight: 151kg
• Extra Weight Per Metre Of Extra Lift: 5.6kg
• Dimension A: 670mm
• Dimension B: 313mm
• Dimension D: 430mm
• Dimension E: 325mm
• Dimension H: 1030mm
• Dimension I: 60mm
• Dimension J: 48mm
• Dimension K: 60mm
• Dimension L: 48mm
• Dimension M: 43mm
• Dimension N: 43mm

Part Number/SKU: TM9003-05003

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
