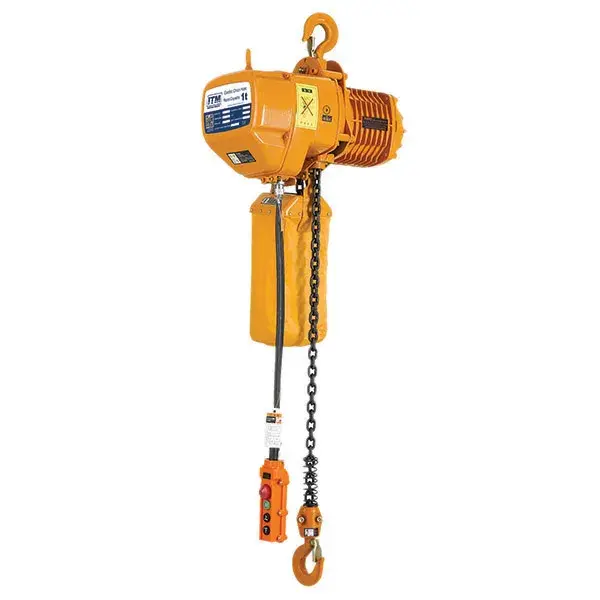

Electric Chain Hoist 415V 1 Tonne 3 Metre lift ITM TM9003-01003

FEATURES:

• Japanese technology with dual braking system to ensure safe and reliable operation
• Dual Speed
• Compact and lightweight design
• Weight overload limiter for safety
• Dual-gear drive system providing smooth and quiet operation
• Three-phase, 415V motor
• Upper and lower limit switches to prevent chain runout
• ITM can alter chain length to your required length
• Tested & certified to AS 1418.2
• Test certificate & user manual supplied
• Replacement Chain 7.1mm TM9810-01607-1
• Replacement Chain 11.2mm TM9810-04011-2

SPECIFICATIONS:

• Rated Capacity: 1 Tonne
• Standard Lift: 3m
• Running Test Load: 12.5kN
• Motor: 1800W 415V 3P
• No. of Chain Drops: 1
• Chain Type: Grade 80 7.1mm
• Lift Speed: 6.9 & 2.3m/min
• Net Weight: 61kg
• Extra Weight Per Metre Of Extra Lift: 1.1kg
• Dimension A: 582mm
• Dimension B: 280mm
• Dimension D: 300mm
• Dimension E: 176mm
• Dimension H: 650mm
• Dimension I: 40mm
• Dimension J: 31mm
• Dimension K: 40mm
• Dimension L: 31mm
• Dimension M: 22mm
• Dimension N: 22mm

Part Number/SKU: TM9003-01003

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
