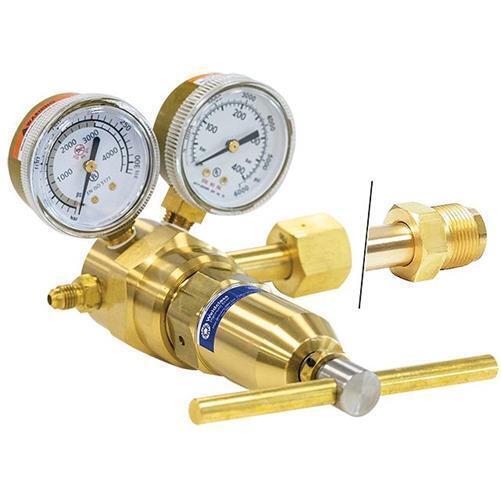

EHP Nitrogen Regulator, Extra High Pressure Gauge Welding Gas WELDCLASS WC-03400

SPECIFICATIONS:

• Brand: Weldclass
• Part Number: WC-03400
• Max Delivery Pressure: 28,000KPa / 280 bar / 4,000psi
• Outlet Connection: Standard 7/16" JIC male RH - also known in the HVAC industry as 1/4" Flare*
• Max Inlet (Cylinder) Pressure: 40Mpa / 40,000Kpa / 400 bar / 5,800psi
• Inlet Connection: Fitted with Type 50 (female nut) & supplied with additional Type 51 (male nut) if required to fit EHP (extra high pressure) cylinders
• Regulation: Piston sensing
• Warranty: 1 Year

FEATURES:

• Heavy-duty Platinum series.
• Extra-high pressure (EHP) Nitrogen regulator for applications requiring delivery pressures of up to 28,000 Kpa (4,000 psi / 280 Bar).
• Robust design to withstand the rigors of site work.
• Fitted with a Type 50 (female) inlet for connection to standard nitrogen cylinders and supplied with an additional Type 51 inlet for connection to EHP (extra high pressure) cylinders if required.
• PLATINUM series, no quality shortcuts.
• Designed and manufactured by a team with over 40 years of experience in gas equipment engineering.

Part Number/SKU: WC-03400

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
