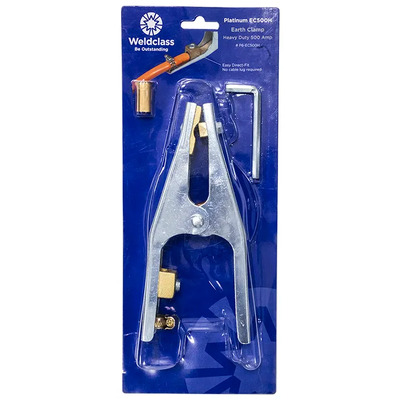

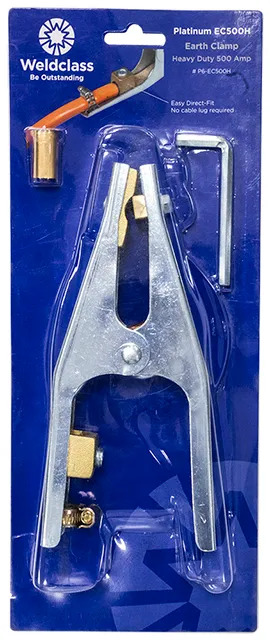

Earth Clamps 50Amps Heavy Duty Direct Fit Style Weldclass P6-EC500H


KEY FEATURES:

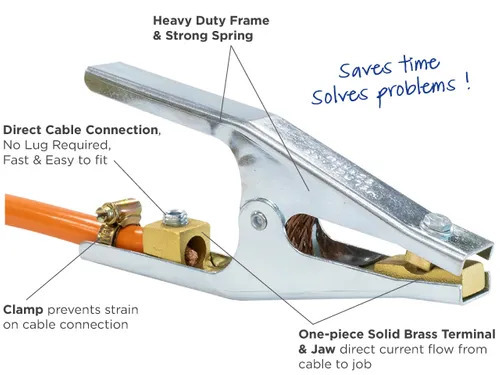

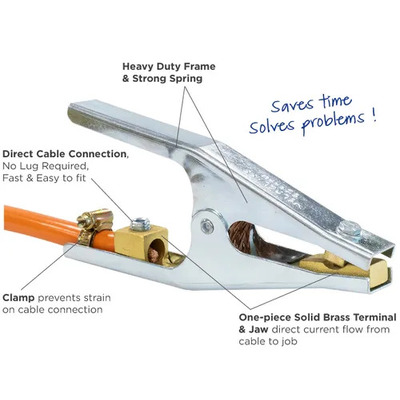

• Very fast & easy to Fit: No lug required, cable fits directly to clamp using hex-key supplied with the clamp
• Heavy-duty design with solid brass jaws for long service life
• One-piece cable terminal and jaw: Very direct current flow from the cable to the job
• A very firm cable connection withstands a high degree of cable strain

APPLICATION AND SPECIFICATIONS:

• Suitable for use on welders up to 500A-600A
• Cable terminal ID 16mm, fits cable up to 70mm2
• Clamps up to 50mm RHS or pipe

Part Number/SKU: P6-EC500H

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
