Earth Clamp Heavy Duty Direct Fit 250A-300A Welders EC200H Weldclass WC-01647

DESCRIPTION:

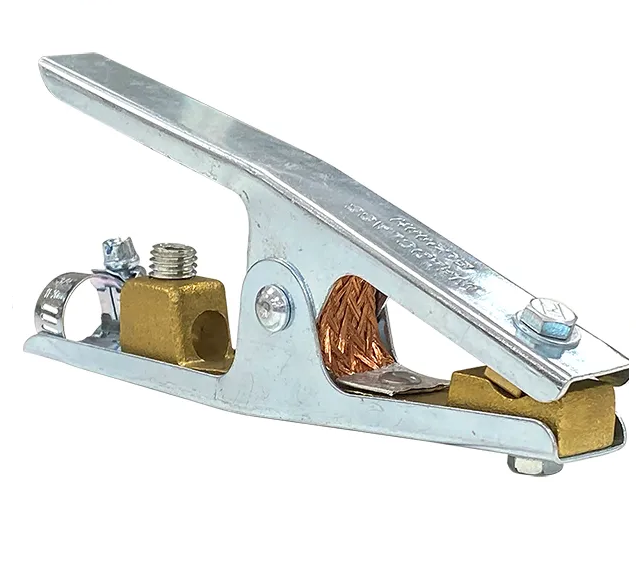

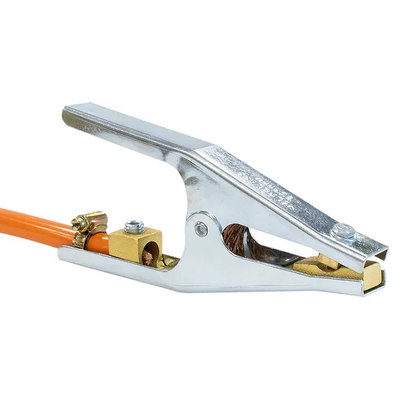

Weldclass PLATINUM series direct-fit earth clamps are designed for straightforward fitting and long life. No cable lug is required, just wire the cable directly to the clamp. Robust heavy-duty build for extended service life. One-piece, solid brass cable terminal & jaw assembly for direct current flow from cable to the workpiece, minimizing current leakage and issues caused by poor earthing. Commonly used on welders from 150 to 600 amps.

KEY FEATURES:

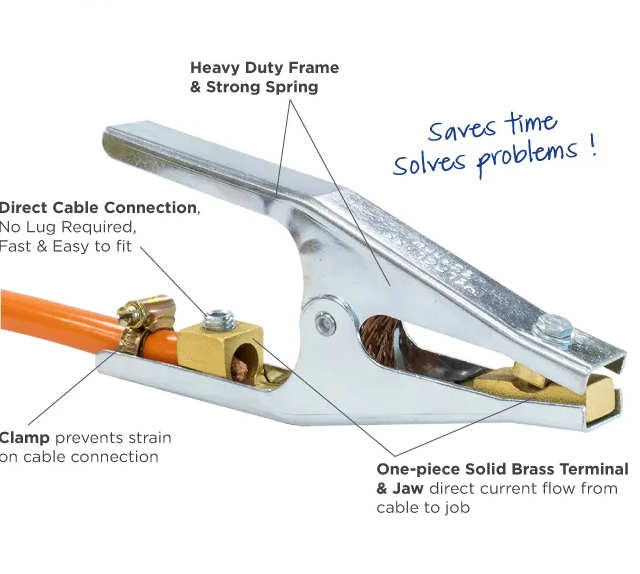

• Very fast & easy to Fit: No lug required, cable fits directly to clamp using hex-key supplied with the clamp

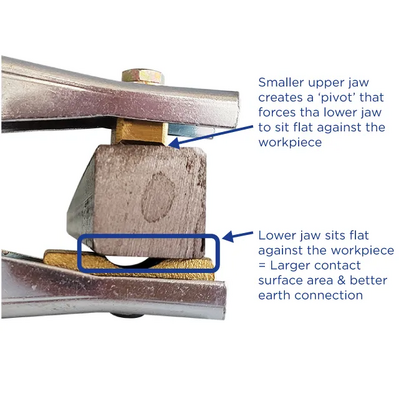

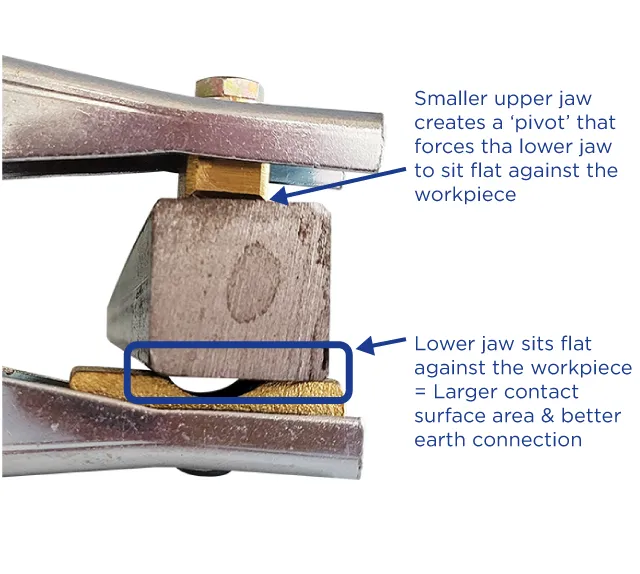

• Heavy-duty design with solid brass jaws for long service life
• One-piece cable terminal and jaw: Very direct current flow from the cable to the job
• A very firm cable connection withstands a high degree of cable strain

EC200H APPLICATION AND SPECIFICATION:

• Suitable for use on welders up to 250A-300A
• Cable terminal ID 13mm, fits cable up to 35mm2
• Clamps up to 28mm RHS or pipe

Part Number/SKU: WC-01647
