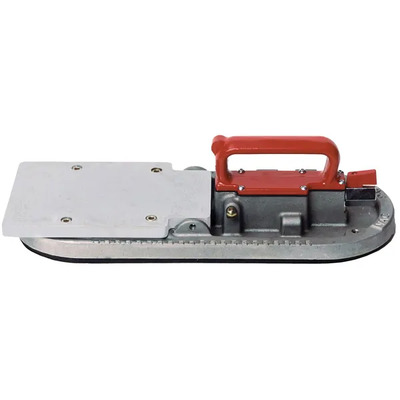

Drillmate Vac Pad Vacuum Base For Use With Magnetic Base Drills ITM DM110SP

FEATURES

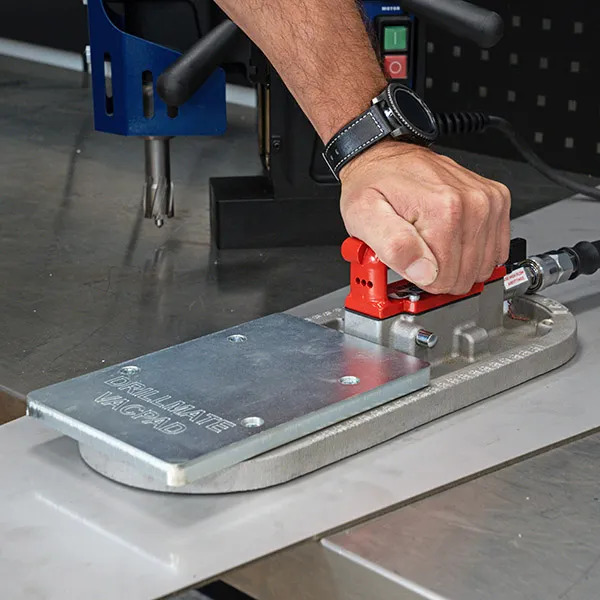

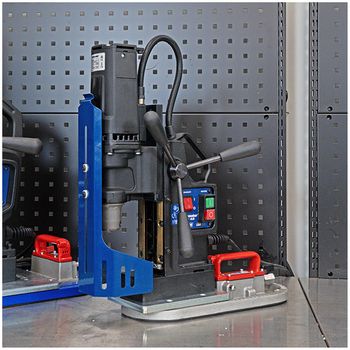

Adapt your Holemaker machine for use on non-ferrous materials.
DM110SP Vac-pad dimensions - 200 x 133mm
Suits machines:
HMPRO35
HMPRO35AUTO
HMPRO35T3
HMPRO40
HMPRO42
HMPRO50
HMPRO65
HMSPECIAL60
HMSPECIAL80
Note - the HMPRO36AD and HMPRO35MS cannot be used on the DM110SP

SPECIFICATIONS
Surface does not have to be smooth, imperfections up to 3.0mm.
Surface holding power is 3383Nm

Overall Dimensions: 400 x 153mm
Steel Plate Size: 202 x 136 x 12mm
Air Pressure Required: 2.0cfm @ 85psi.
Weight (Incl Plate): 4.14kg

DESCRIPTION

Part Number/SKU: DM110SP

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	DM110SP
Brand	ITM
Shipping Weight	4.3000kg
Shipping Width	0.300m
Shipping Height	0.300m
Shipping Length	0.500m
Shipping Cubic	0.045000000m3
Unit Of Measure	ea
