Drill Bit Set HSSG Sizes 1.0mm-13.0mm 25 Piece Pferd 25203702

25pc Drill Bit Set HSSG Sizes 1.0mm - 13.0mm

Full ground drill bits with cross grinding

Diameter in mm: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 10.5, 11.0, 11.5, 12.0, 12.5, 13.0

DIN 338 HSSG N STEEL Drill Bit Sets

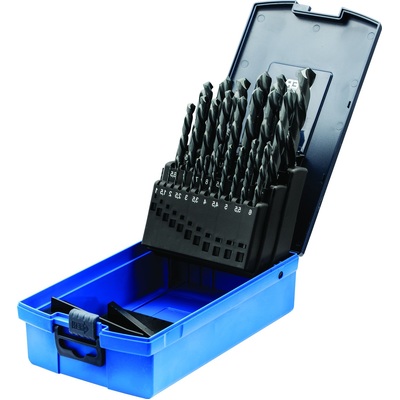

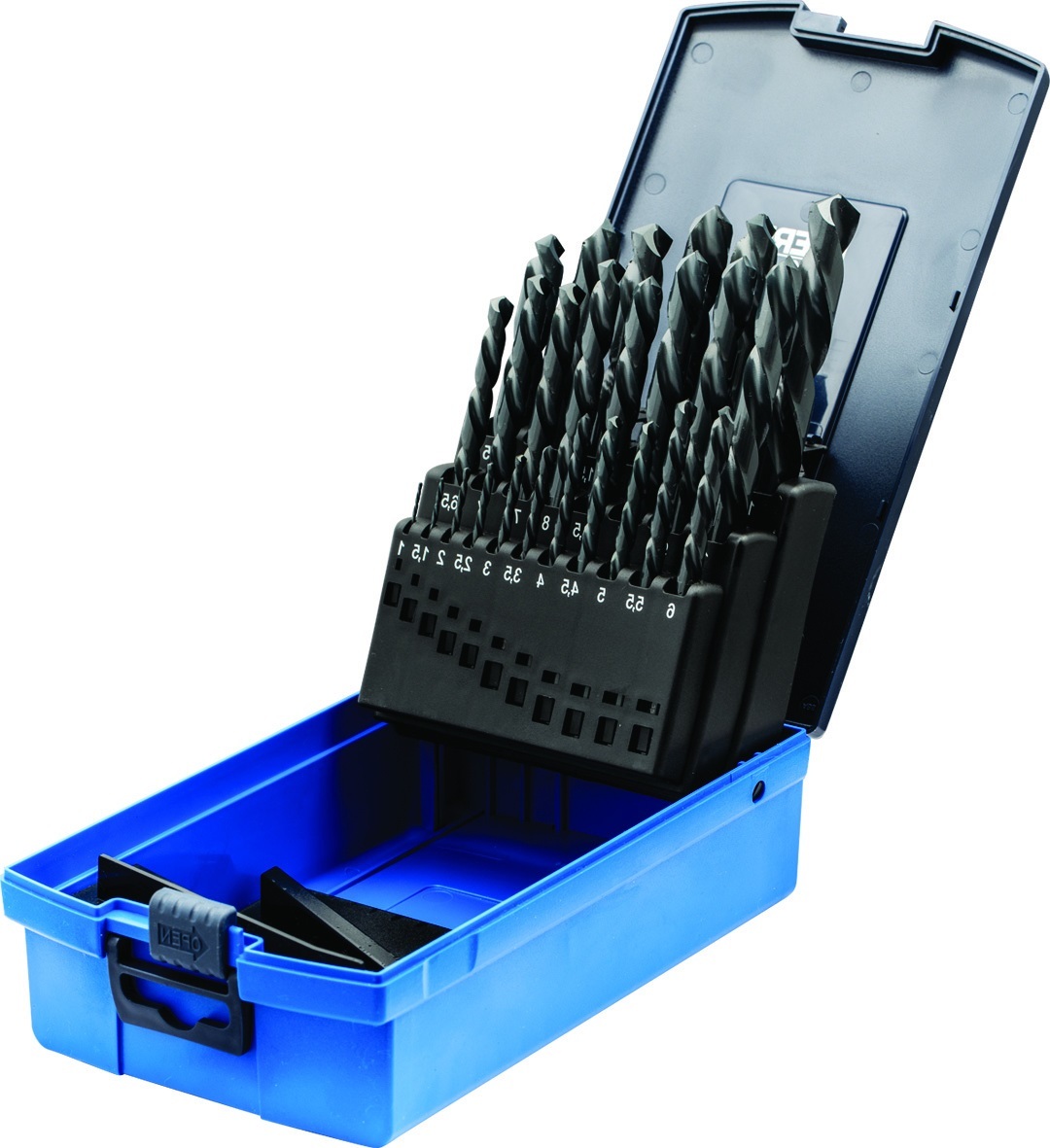

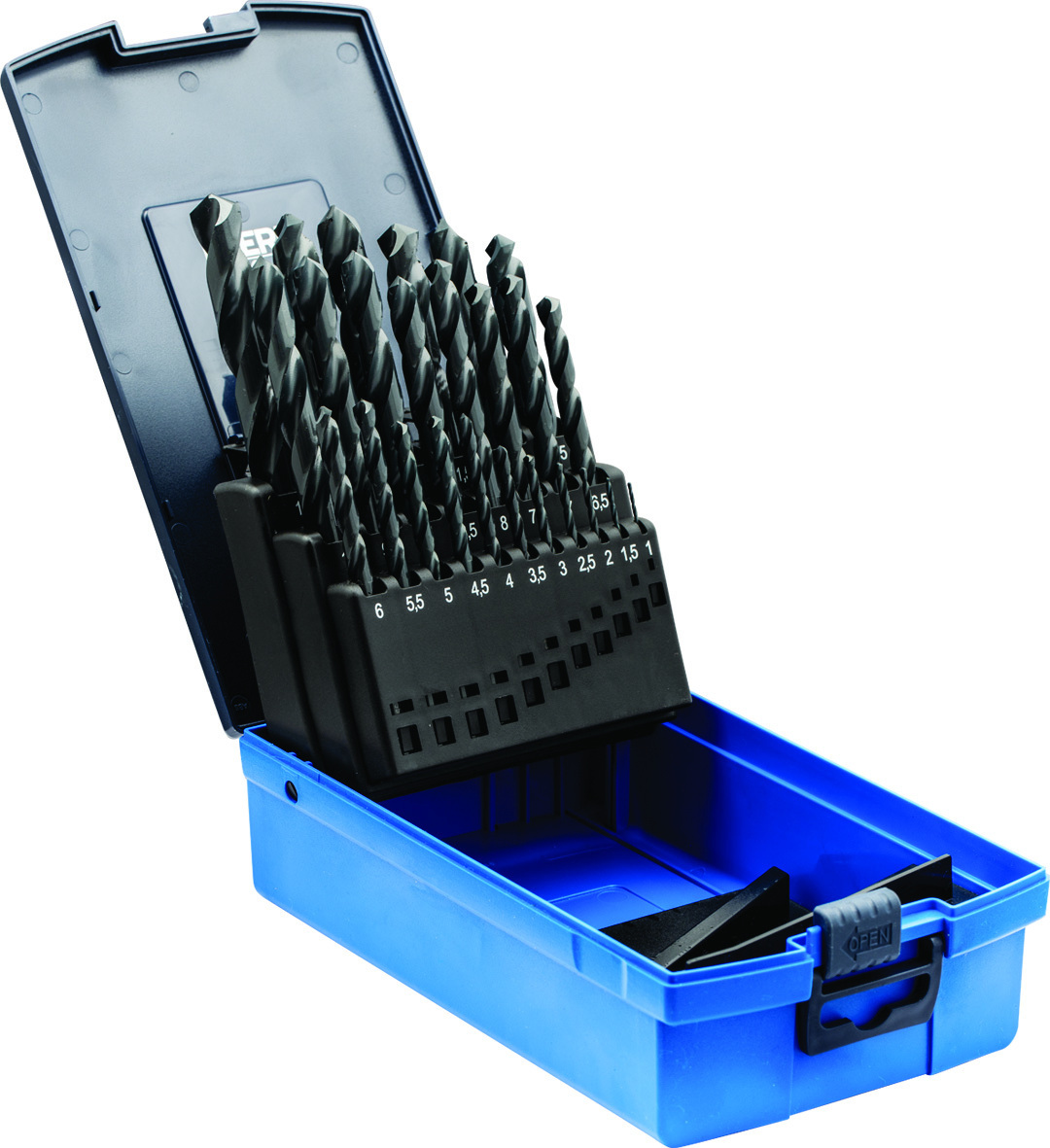

• Includes a sturdy plastic box that protects the drills

• Easy drill selection & storage

• High speed steel twist drill bits

• Suitable for general use on steel, cast steel, grey cast iron, annealed cast iron, bronze, brass, aluminium

• Easy centring, long tool life & good chip removal

High-performance drilling tools in the STEEL in HSSG (M2) type for industrial uses.

Fully ground, right-hand turning version with cross grinding.

They are precision ground both in the chip flute and the guide chamfer as well as at the drill tip.

They also have cross grinding. These drills are suitable for highly precise positioning on work pieces and support centring during

drilling.

Recommendations for use:

• Observe the recommended rotational speed.

• When drilling metals, use a high-quality cutting oil or cooling lubricant, if possible. This facilitates smooth running and extends the drill tool life. Exception: when working on aluminium, use kerosene instead of cutting oil.

• In order to avoid corrosion, remove any particles which develop when working on stainless steel (INOX) from the work piece.

Clean the work piece chemically or mechanically (etching/polishing, etc.).

Part Number/SKU: 25203702
