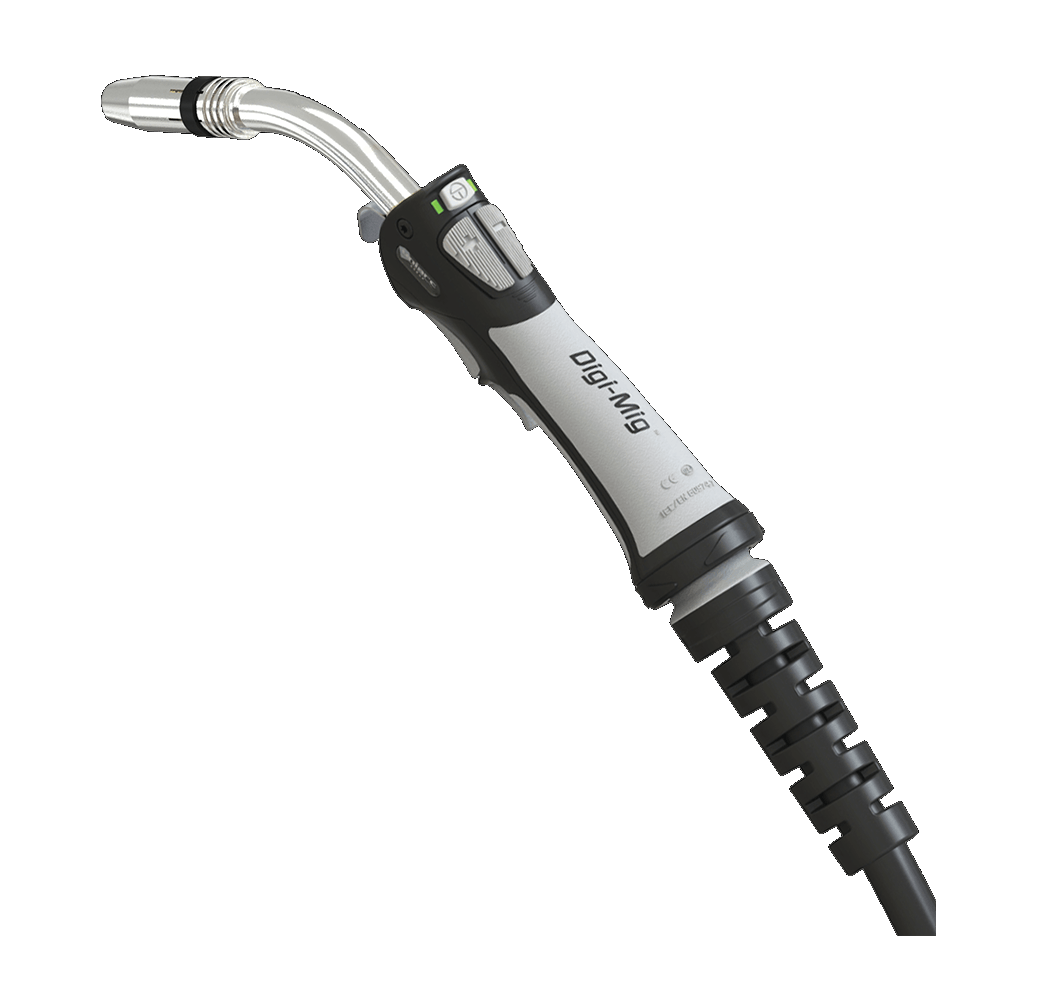

DM24 DIGITAL BINZEL STYLE MIG TORCH

The Binzel style DM24 Digital MIG Torch has been engineered for trouble-free and powerful performance, whilst being able to change your welding parameters instantly on the torch itself.
 The control pad on the torch has enabled parameter adjust whilst welding without any disturbance of the filler metal and weld puddle.
 This torch also features a DURAFLEX™ Performance Cable system offering outstanding flexibility, with the highest heat and abrasion resistance.
 Available in 4m length.

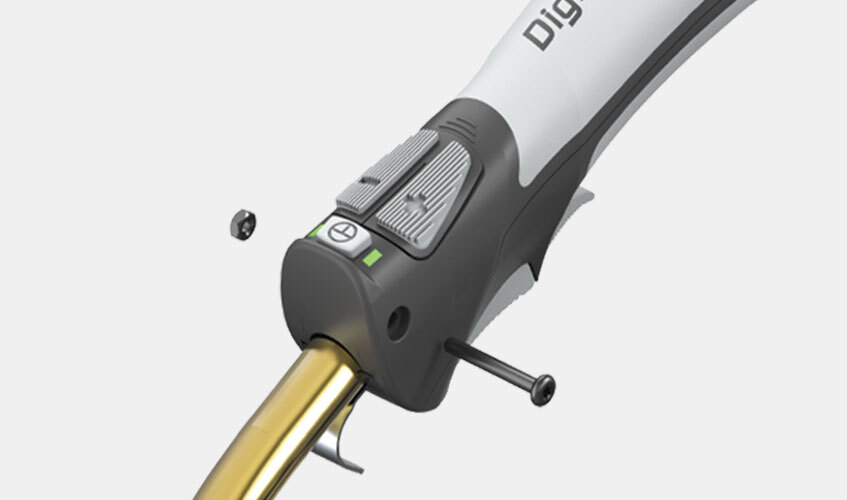

DIGITAL MIG CONTROL MODULES
Weld without boundaries. This torch has interchangeable digital MIG control modules so you can tailor your torch to your needs. The control pad on each module lets you adjust parameters while welding without disturbing the filler metal and weld puddle.
Weld without boundaries. This torch has interchangeable digital MIG control modules so you can tailor your torch to your needs. The control pad on each module lets you adjust parameters while welding without disturbing the filler metal and weld puddle.
Weld without boundaries. This torch has interchangeable digital MIG control modules so you can tailor your torch to your needs. The control pad on each module lets you adjust parameters while welding without disturbing the filler metal and weld puddle.

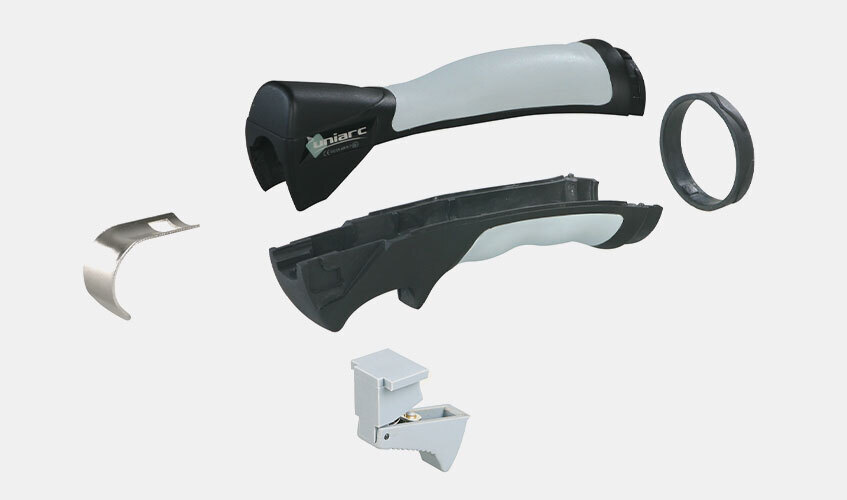

PATENTED ERGONOMIC HANDLE
The patented, screwless design on this torch gives the ultimate combination of balance, positioning and ergonomics. Soft rubber handle grips ensure comfort all day long, you’ll be thinking its been custom-made.

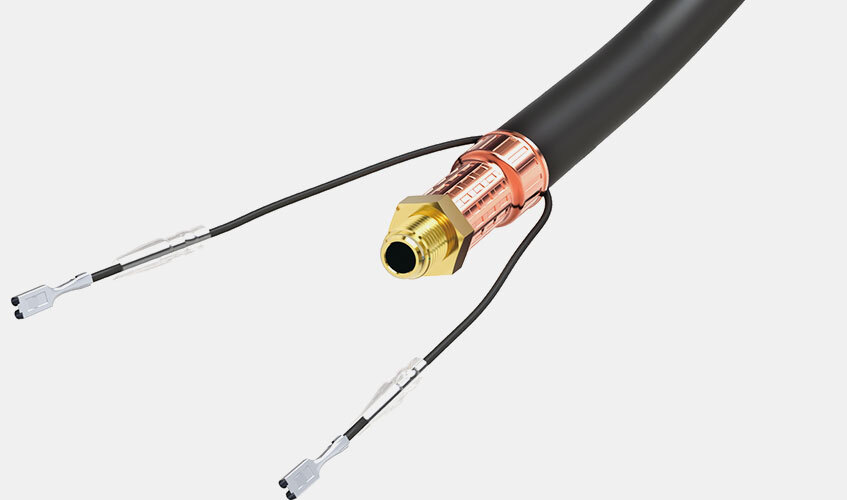

DURAFLEX™ PERFORMANCE CABLE
The DURAFLEX™ Performance Cable system on this torch gives you awesome cable flexibility, with the highest heat and abrasion resistance. The outer cable jacket is constructed from cross-linked polymers, providing a tear-proof outer layer with a burn threshold of 375°C.

REAR CABLE SUPPORT
An extra-length cable-support system give you smooth and consistent wire feed no matter the angle you come in at.

Product No: DM2400-JDM2-MT1-40ER

MIG TORCH SPECIFICATIONS

COOLING METHOD
Air Cooled

DUTY CYCLE - CO2
60% @ 250A

DUTY CYCLE - MIXED GAS
60% @ 220A

WIRE SIZE
0.8-1.2mm

LENGTHS (m)
4

STANDARD
EN60974-7

Part Number/SKU: DM2400-JDM2-MT1-40ER

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
