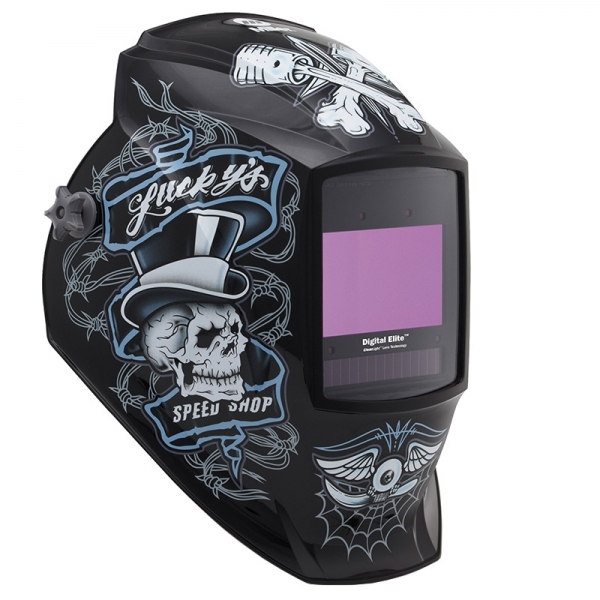

Digital Elite^TMHelmet - Lucky's Speed Shop 281001

CLEARLIGHT™ LENS TECHNOLOGY

High-definition optics for precision arc recognition. Engineered to complement the colours emitted from the welding arc for enhanced clarity and natural colour — so that you can see more detail.

WHAT IS X-MODE

Sensors are normally triggered by the light when you strike an arc. In X-Mode, the sensors are triggered by the electromagnetic field that is created when you start a weld.

X-Mode overcomes instances where obstructions block a sensor when welding out-of-position. Even when there is an obstruction, the sensor will still trigger because of the electromagnetic field.

For outside work, X-Mode will stop the lens constantly lightening and darkening because of the light triggering the sensors. The sensors will only trigger the lens to darken when you start to weld.

IMPROVED DIGITA CONTROLS
Digital controls with large displays allow the user to easily adjust modes, shade levels, delay and sensitivity.

LIGHTWEIGHT HEADGEAR
The lightweight headgear has multiple settings to achieve the best fit and comfort.

AUSTRALIAN STANDARDS

Tested in Australia, the lens and helmet comply with Australian Standards AS/NZS 1338.1 (Auto-Darkening) and AS/NZS 1337.1 B (High Impact).

FOUR INDEPENDENT ARC SENSONS

Provide continuous arc sensing for the most demanding applications plus superior lens response.

BATTERY POWERED WITH SOLAR ASSIST

Two replaceable lithium batteries, with solar assist, deliver up to 3000 hours of use.

MAGNETIC LENS COMPATIBLE

Add a magnifying lens if required. Magnifying lens not included.

BONUS ACCESSORIES

5 Outside cover lenses.
2 Inside Cover lenses.
Helmet Bag

3 YEARS WARRANTY

Designed to withstand industrial environments, Miller helmets come with a 3 year warranty (auto-darkening lens only).

SPECIFICATIONS

Viewing Area	97mm x 60mm
Operationg Modes	4 Modes - Cut, Weld, Grind & X-Mode
Arc Sensors	4 Independent Sensors Plus X-Mode
Light State	Shade 3 (All Modes)
Grind Mode	Shade 4
Cut Mode	Shade 5-9
X-Mode and Weld	Shade 8-13
TIG Rating	5 Amps
Switching Speed ( Light to Dark)	1/25,000
Delay Speed (Dark to Light)	0.10-1.0 Sec
On/Off Control	Automatic
Magnifying Lens Holder	Yes
Weight	510g

Part Number/SKU: 281001

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SPECIFICATIONS:

Product Specifications
Viewing Area	97 x 60mm
Operating Modes	Weld, Cut, Grind & X-Mode*
Arc Sensors	4 Independent Sensors Plus X-Mode
InfoTrackTM Lens Technology	Yes
Variable Shades	9-13
Light State	4 (All Modes)
Grind Mode	Integrated Grind Shield
Cut Mode	Shade 5-9
X-Mode*	Shade 9-13
TIG Rating	5 Amps
Power	Replaceable Lithium Batteries (2) with Solar Assist: up to 3000 Hours
Low Battery Light	Red LED shows 2-3 days of Remaining Battery Life
Switching Speed (Light-Dark)	1/20,000 Sec
Delay Speed (Dark-Light)	0.10-1.0 Sec
On/Off Control	Automatic
Magnifying Lens Holder	Yes
Weight	737g
Standards	AS/NZS 1338.1 (Auto-Darkening) AS/NZS 1337.1 B (High Impact) ANSI Z87.1-2003 (High Impact) DIN/TUV/CSA
Warranty	3 Years (Auto-Darkening Lens Only)
* X-Mode eliminates sunlight interference, intermittent sensing (pipe), low amperage lens openings (TIG) and obstructed sensors

Digital Lens Technology
Weld	Suits MIG, Stick, TIG, Flux Cored and Pulse welding processes. Shades 9-13.
Cut	Suits Plasma, laser, gas welding and cutting applications. Shades 5-9.
Grind	Suits weld preparation and clean-up. Fixed shade 3.
X-Mode	Electromagnetic arc sensing technology eliminates sunlight interference, intermittent sensing (pipe), low amperage lens openings (TIG) and obstructed sensors. Shades 9-13.

SKU	281001
Brand	Miller
Shipping Weight	3.0000kg
Shipping Width	0.450m
Shipping Height	0.350m
Shipping Length	0.350m
Shipping Cubic	0.055125000m3
Unit Of Measure	ea
