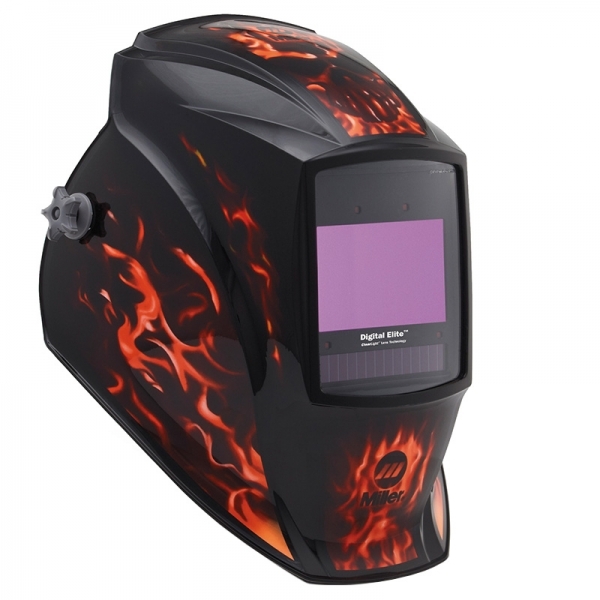

Digital Elite™ Helmet - Inferno 281003

CLEARLIGHT™ LENS TECHNOLOGY

High-definition optics for precision arc recognition. Engineered to complement the colours emitted from the welding arc for enhanced clarity and natural colour — so that you can see more detail.

WHAT IS X-MODE ?

Sensors are normally triggered by the light when you strike an arc. In X-Mode, the sensors are triggered by the electromagnetic field that is created when you start a weld.

X-Mode overcomes instances where obstructions block a sensor when welding out-of-position. Even when there is an obstruction, the sensor will still trigger because of the electromagnetic field.

For outside work, X-Mode will stop the lens constantly lightening and darkening because of the light triggering the sensors. The sensors will only trigger the lens to darken when you start to weld.

IMPROVED DIGITAL CONTROLS

Digital controls with large displays allow the user to easily adjust modes, shade levels, delay and sensitivity.

LIGHTWEIGHT HEADGEAR

The lightweight headgear has multiple settings to achieve the best fit and comfort.

SUITS A WIDE RANGE OF WELDING PROCESSES

MIG, Stick, TIG, Flux Cored and Pulse.

FOUR INDEPENDENT ARC SENSONS

Provide continuous arc sensing for the most demanding applications plus superior lens response.

BONUS ACCESSORIES

• 5 outside cover lenses
• 2 inside cover lenses
• Helmet bag

BATTERY POWERED WITH SOLAR ASSIST

Two replaceable lithium batteries, with solar assist, deliver up to 3000 hours of use.

3 YEAR WARRANTY

Designed to withstand industrial environments, Miller helmets come with a 3 year warranty (auto-darkening lens only).

SPECIFICATIONS



Viewing Area	97mm x 60mm
Operationg Modes	4 Modes - Cut, Weld, Grind & X-Mode
Arc Sensors	4 Independent Sensors Plus X-Mode
Light State	Shade 3 (All Modes)
Grind Mode	Shade 4
Cut Mode	Shade 5-9
X-Mode and Weld	Shade 8-13
TIG Rating	5 Amps
Switching Speed ( Light to Dark)	1/25,000
Delay Speed (Dark to Light)	0.10-1.0 Sec
On/Off Control	Automatic
Magnifying Lens Holder	Yes
Weight	510g





Part Number/SKU: 281003

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
