Cold Wire Feeder System for Tig Promax PX20TIG

Features:

  • Improves productivity by eliminating stops caused by cut length wire.
  • Eliminates end waste of cut length filler metal, an average savings of 10 to 20%.
  • Reduces cost of filler metal by utilizing spooled wire instead of cut length.
  • High frequency protection ensures reliability in all TIG applications.
  • Low initial cost - The PX20TlG is less than half the cost of most TIG cold wire feed systems on the market today
  • Low operating cost - Utilizes standard feed tips, standard liners, and standard momentary switch on feed pen.
  • The PX20TIG ships complete - Includes feed pen and 8 lead, drive rolls, power cord and plug for 110VAC input power.

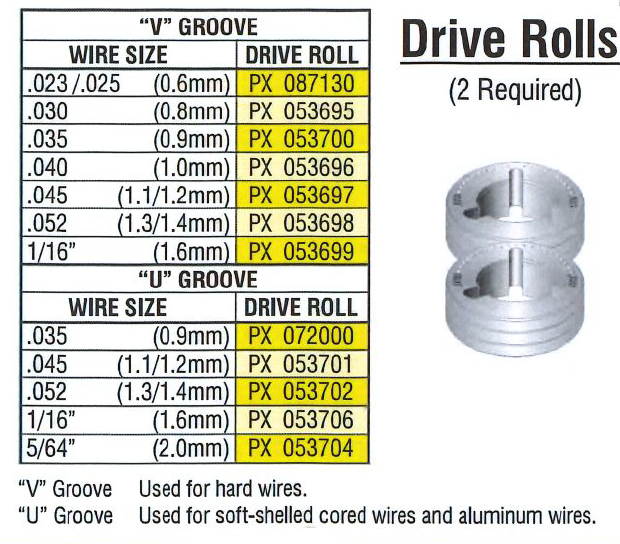

  • Two (2) gear driven rolls with Tool-Less roll change. (Uses Miller@ style drive rolls).
  • Spool capacity - Standard 12" spools.

Specifications:

  • Part # PX-20TIG
  • Input Power 110VAC (50/60Hz)
  • Wire Diameters .023" (0.6mm) - 5/64" (2.0mm)
  • Wire Feed Speed 75 - 900 IPM (1.9 - 23 m/min)
  • Height 14" (356mm)
  • Width 11" (280mm)
  • Depth 25.5" (648mm)
  • Weight 36 lbs. (16.5kg)

Warranty

  • 3 Year Warranty




Part Number/SKU: PX20TIG

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU PX20TIG
Brand Profax
Shipping Weight 35.0000kg
Shipping Width 0.600m
Shipping Height 0.800m
Shipping Length 0.600m
Shipping Cubic 0.288000000m3
Unit Of Measure ea
