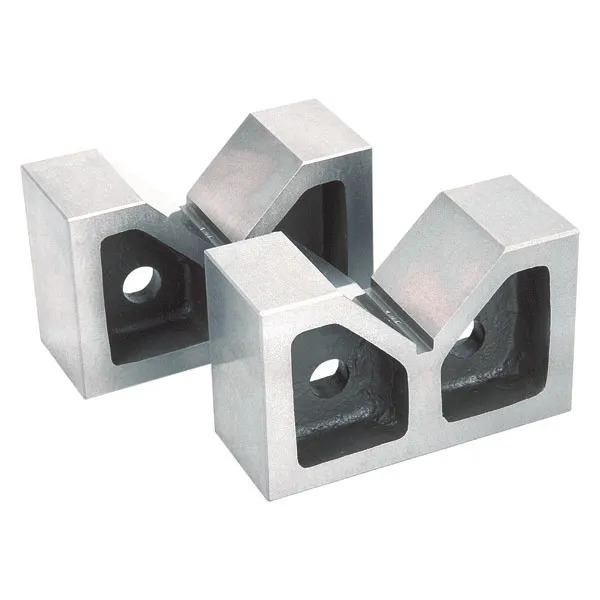

Cast Iron Vee Block Matched Pair 150 x 62 x 88mm, 78mm Vee Width GZ-03103

FEATURES
Made from close grained cast iron, these blocks are precisely ground and machined square and parallel.
The Vee’s are 90° centred in true.
The blocks are manufactured and supplied in numbered pairs and come in handy for holding large jobs where clamping is not necessary.
Squareness and Parallelism of Vee Grooves with respect to base - Within 0.0012” (30 microns)
SPECIFICATIONS
Code: VB/C/6
Dimensions: 150 x 62 x 88mm
Vee Width: 78mm

Part Number/SKU: GZ-03103

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
