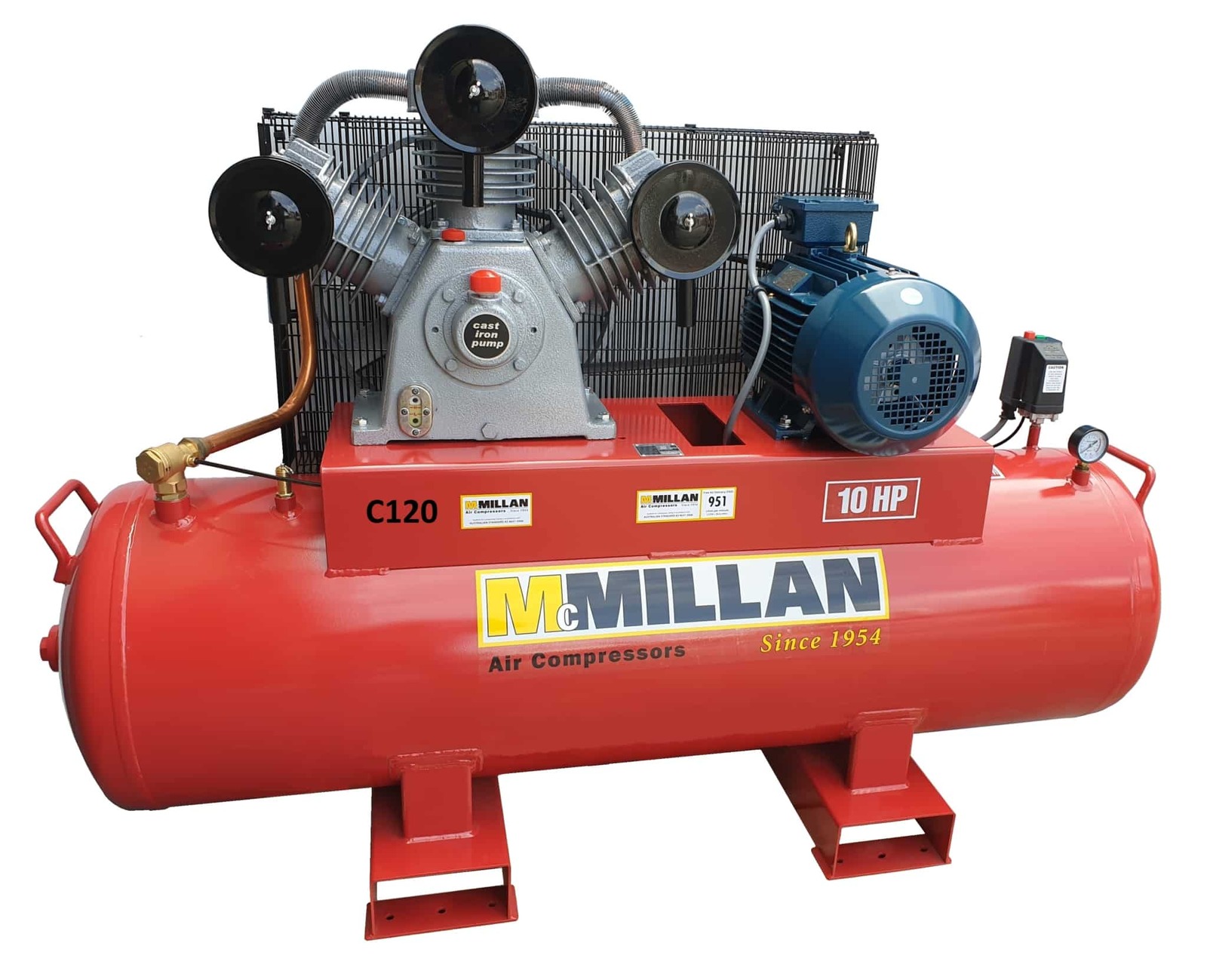

C Series 415V Air Compressor 10HP 3 Cylinder 1,030LPM / 36.4CFM C120

C Series – 415V
Built in Australia.
This industrial range of air compressors use air receivers to the Australian Standard AS1210 as required by the Department of Occupational Health and Safety.

Rated to AS4637.Heavy duty cast iron pumps.V-Twin or W-Triple cylinder configuration.Fully balanced flywheel with large cooling blades.Low speed, single stage pump.Auto stop/start pressure switch.TECO totally enclosed fan cooled motor.Supported by TECO National Service Network.Forklift feet.Warranty.
2 years on pump.
5 years on tank.
1 year on motor.

SPECIFICATIONS

Displacement	52.0 CFM / 1471 L/Min
Free Air Delivery	36.4 CFM / 1030 L/Min
Motor	10.0 HP
Tank	300 Litres
Max. Pressure	130 Psi
Pump Model	UB100B
Cylinders	W-Triple

Part Number/SKU: C120

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	C120
Brand	McMillan Air Compressors
Shipping Weight	400.0000kg
Shipping Width	0.800m
Shipping Height	1.300m
Shipping Length	2.000m
Shipping Cubic	2.080000000m3
Unit Of Measure	ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

C Series 415V Air Compressor 10HP 3 Cylinder 1,030LPM / 36.4CFM C120

C Series – 415V
Built in Australia.
This industrial range of air compressors use air receivers to the Australian Standard AS1210 as required by the Department of Occupational Health and Safety.

SPECIFICATIONS

Displacement	52.0 CFM / 1471 L/Min
Free Air Delivery	36.4 CFM / 1030 L/Min
Motor	10.0 HP
Tank	300 Litres
Max. Pressure	130 Psi
Pump Model	UB100B
Cylinders	W-Triple

Attributes

SKU	C120
Brand	McMillan Air Compressors
Shipping Weight	400.0000kg
Shipping Width	0.800m
Shipping Height	1.300m
Shipping Length	2.000m
Shipping Cubic	2.080000000m3
Unit Of Measure	ea
