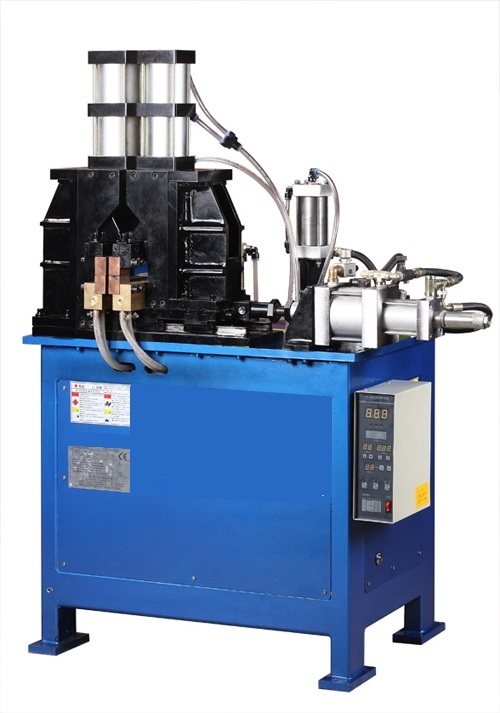

Resistance heat forced welding machine - Butt Welding

Rated Power 200kVA
Voltage 415V
Frequency 50/60Hz
Max Short Current 37000A
Duty Cycle 50%
Max Clamping Force 8500N
Max Upsetting Force 4000N
Cooling Water Required 300L/H
Average Weight 1400kg
Dimension LWH 1400x1000x1700

The main principal of Flash Butt Welding

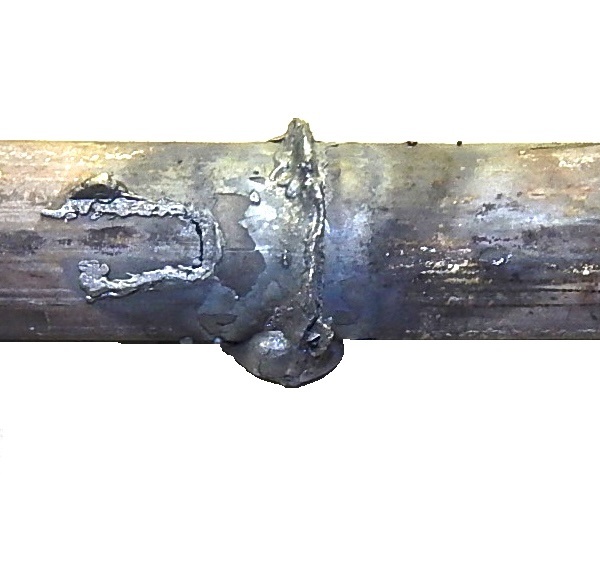

Butt Flash process starts the same way as the regular butt welding but since the motion of the moveable jaw is controlled and does not allow pieces to melt together, then welding current eventually overheats the contact area and the "flasing" begins emitting shower of sparks.

Advantage of this process is to allow precise control of heating up the area to be joined, with less energy used and produce repeatable dimensions of the parts.

Typical applications

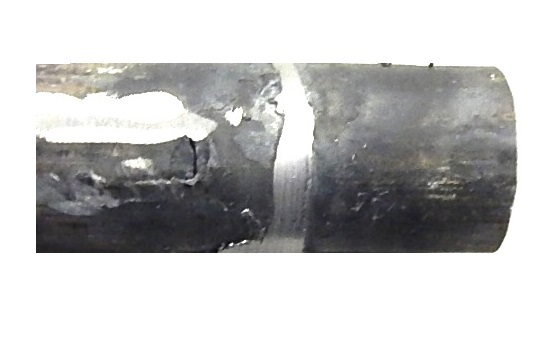

• All kinds of dinnerware, cooking knives and table knives
• Bicycle rim, motorbike rim, car rim or similar strip rings
• Various metal wire and steel strip construction steel bar and rebar
• Round, square and rectangular tubes welding into "L" or "T" shape
• Mire welding of door and window frames

Note: Machine is made to order item. Approximate 30 - 60 Days from payment received

Part Number/SKU: EBbutt200kva
