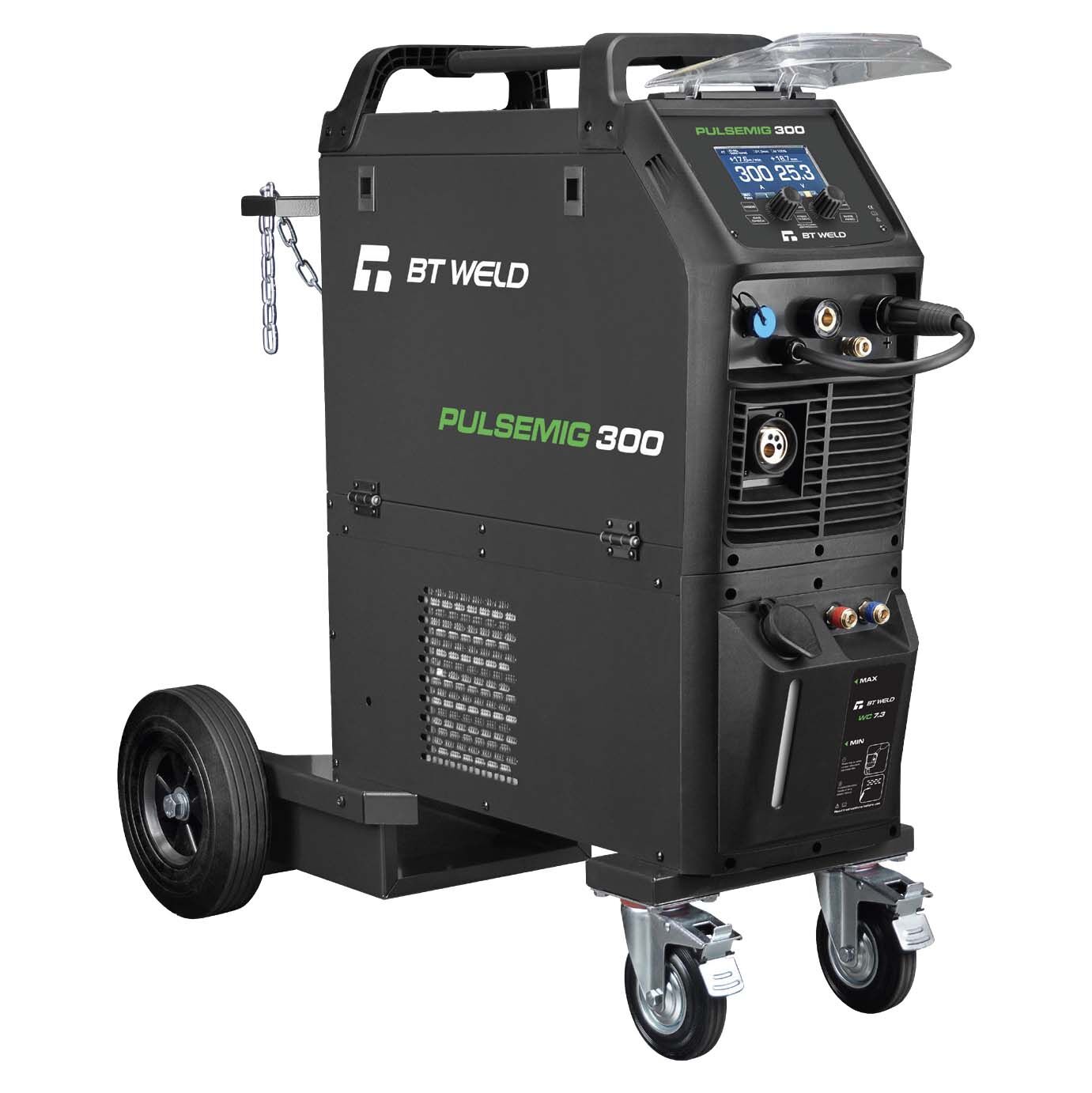

BT PULSEMIG 300 Compact Inverter Welder Water Cooled 415V 658302

PROCESS

  •  MIG SINGLE / DUAL PULSE
  •  MIG SYNERGIC / MANUAL
  •  MIG GAS / GASLESS
  •  TIG LIFT DC
  •  STICK (MMA)

FEATURES
• 300A Output
• 5" Colour LCD Screen
• 2T/4T/S4T/Spot Weld
• Suits D200 & D300 Spools
• 4 Roll Wire Drive System
• 4-Wheel Trolley
• Weld Parameter Storage

  • Duty Cycle - 60% @ 300A
  • Generator - 18 Kva
  • Plate Thickness = Max. 16mm

Material

  •  Mild Steel
  •  Stainless
  •  Carbon Steel
  •  Copper Steel
  •  Aluminium (MIG only)

STANDARD PACKAGE INCLUSIONS

  • BT PULSEMIG 300 Compact Inverter Welder 415V 658302
  • BT Water Cooler 7L 3 Phase 415V 652222
  • BT 4 Wheel Trolley 699577
  • Ergon BZ501 MIG Torch 3Mt 92.ER.501.3
  • Twist Lock Electrode Holder 3Mt 500044
  • Earth Clamp 300Amp 3Mt 500060
  • Argon Twin Gauge Regulator 400209T
  • Quick Connect Gas Hose 2Mt 619000
  • Drive Roller 0.9/1.2mm V Groove (Fitted) RV301012.09.12
  • Drive Roller 1.0/1.2mm U Groove Spare 2pcs RU301012.10.12

SPECIFICATIONS

Primary Input Power

3 Phase 415V 50-60 HZ +/-15%

Duty Cycle @ 40˚C 10min

60% @ 300A 100% @ 235A



MIG

TIG

MMA

Effective Current (A)

15.9

12.6

17.1

Rated Input Current (A)

20.6

16.3

22.1

Rated Input Power (KW)

14.3

11.3

15.4

Welding Current Range (A)

20-300

10-300

10-300

Welding Voltage Range (V)

115-26.5

10.4-22

20.4-32

I Max (A)

20.5

16.5

22.0

I eff (A)

15.9

12.8

17.0

Wire Diameter Range

0.6 – 1.6mm

Electrode Diameter Range

1.6 – 5mm

Protection / Insulation Class

IP21S / S

Power Factor / Efficiency

0.99 / 85.8%

Thermal Overload

       Yes

Dimensions / Weight

L72 x W26 x H49 cm / 28.5kg

Weight

28kg (A) / 30.5kg (W)

Warranty

3 Year

Part Number/SKU: 658302

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 658302
Brand BT Weld
Shipping Weight 35.0000kg
Shipping Width 0.450m
Shipping Height 0.500m
Shipping Length 0.800m
Shipping Cubic 0.180000000m3
Unit Of Measure ea
