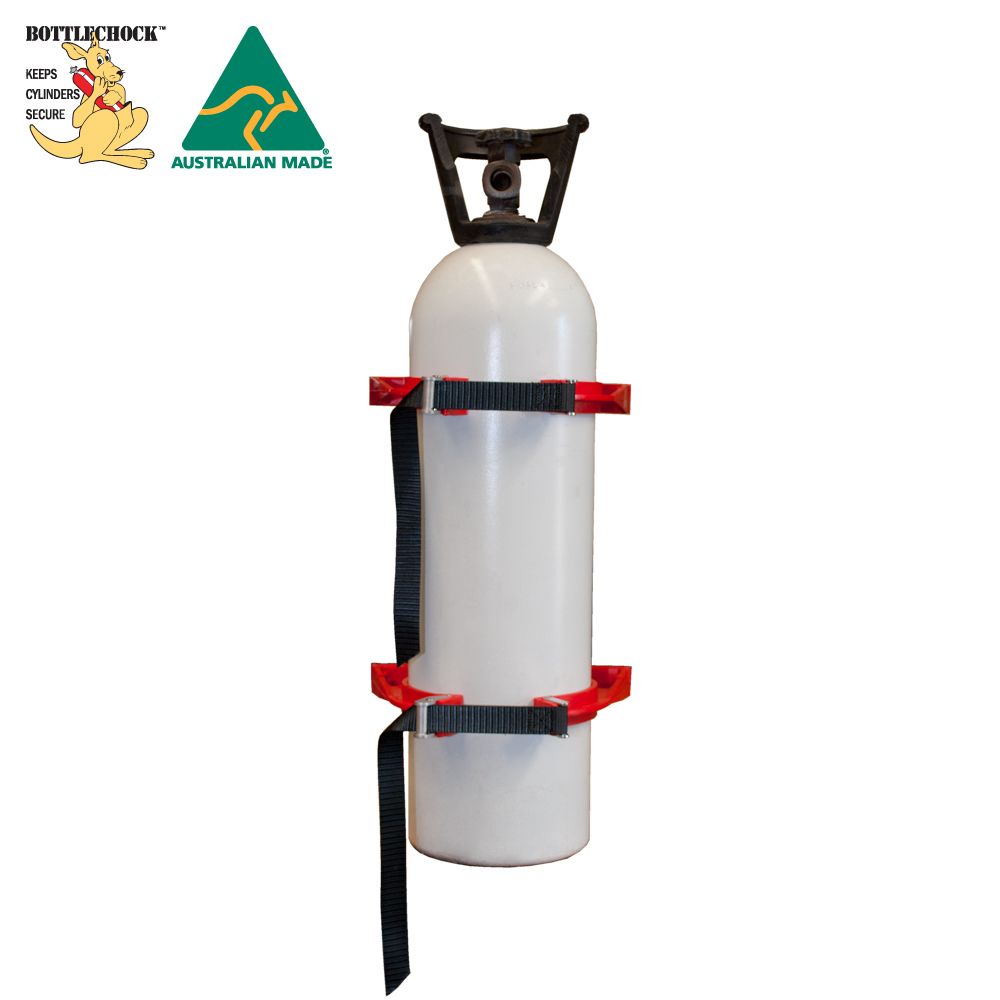

Bottlechock Cylinder Restraint 160-230mm E Size Medium Galvanised BG1M

Kit Includes

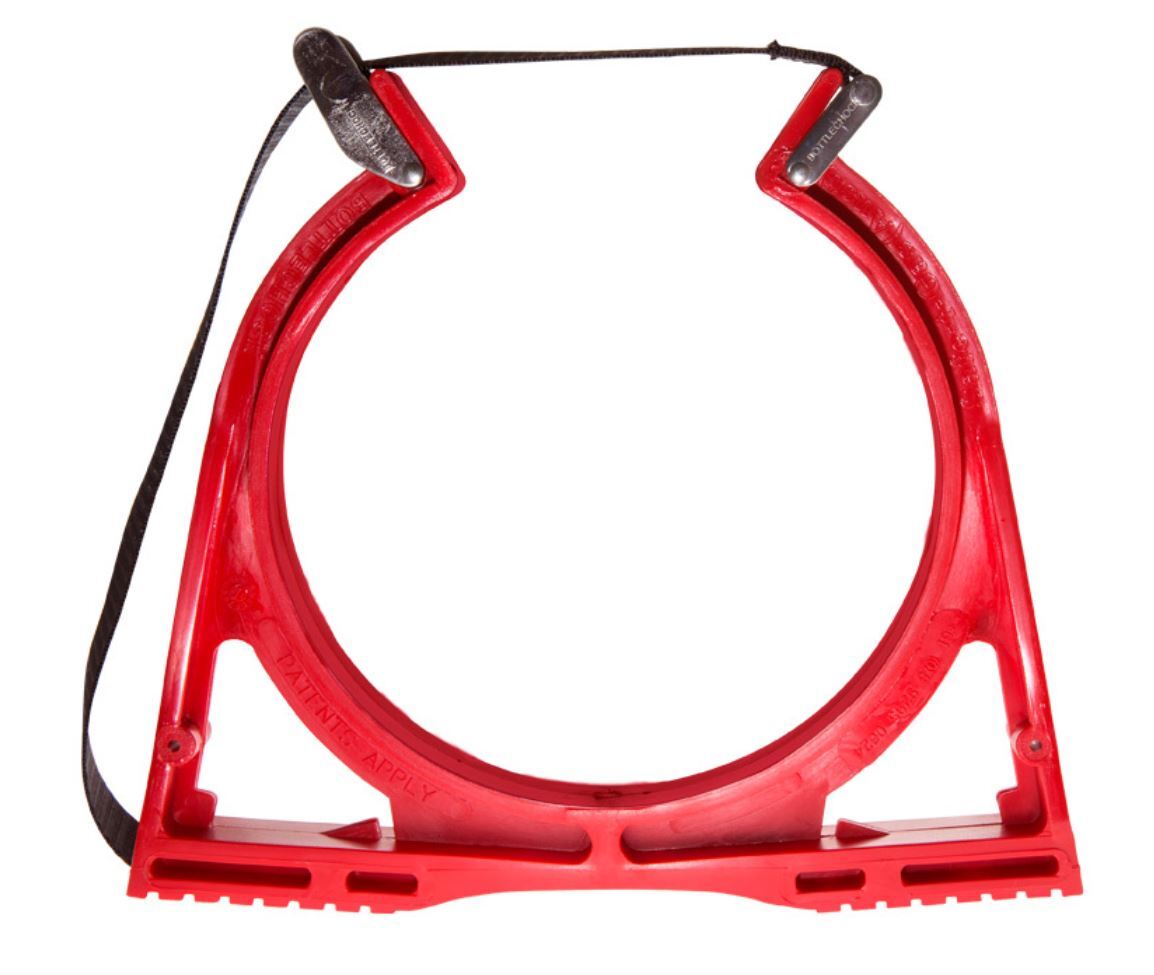

• 2 x Bottlechocks
• 2 x Wall Mount Brackets
• 4 x Securing R Pins

Features

• Purpose designed to keep cylinders secure
• Suits gas cylinders, oxygen tanks, fire extinguishers, oil drums etc.
• Grips around and maintains full contact with the cylinder
• Restricts both horizontal and vertical movement
• In multiple fittings, BOTTLECHOCK secures each cylinder individually
• Easy to install inside buildings or in vehicle trays using bolts (not supplied)
• Quick cylinder changeover with one pull on straps
• Flexible design makes it easy to snap cylinders into place
• Quick release pins free up space when not in use, and allow use in another location

Construction

• Kits include both top and bottom fittings, available with Red or Hi Vis Yellow chocks
• Available in Single (Holds 1 cylinder), Double (Holds 2 cylinders), Triple (Holds 3 cylinders) or Quad (Holds 4 cylinders) Kits
• Size (cylinder diameter): Small (100-145mm), Medium (160-230mm), Medium Large (230-310mm), Large (245-375mm)
• Specialised Oxygen/Acetylene kits available in two sizes, in both galvanised and 316 stainless steel brackets

Technical Specifications

• Flexible nylon chock material is UV stabilised during manufacture
• All non-metal components are highly combustion resistant & self-extinguishing
• All metal components (excluding mounting brackets) are manufactured from stainless steel
• Brackets are available in either 1.6mm Galvanised Steel: for corrosion resistance) or 316 Stainless Steel (ideal for marine and specialty applications).

Part Number/SKU: BG1M

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
