Beam Clamp, 5 Tonne, 320mm Beam Width ITM TM9121-05032

FEATURES:

  • 5000kg Rated capacity
  • Red colour-coded to W.L.L. for safety
  • Beam width to suit 90 - 320mm
  • Durable all steel construction
  • Color-coded to WLL for safety
  • Tested & certified to AS 4991

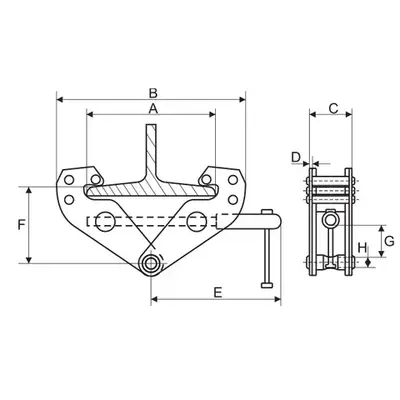

SPECIFICATION:

Weight 11.3KG
Dimension A (max) 356mm
Dimension B (max) 500mm
Dimension B (min) 220mm
Dimension C 112mm
Dimension D 8mm
Dimension E 277mm
Dimension F(max) 220mm
Dimension F(min) 145mm
Dimension G 45mm
Dimension H 33mm




Part Number/SKU: TM9121-05032

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TM9121-05032
Brand ITM
Shipping Width 0.330m
Shipping Height 0.330m
Shipping Length 0.400m
Shipping Cubic 0.043560000m3
Unit Of Measure ea
