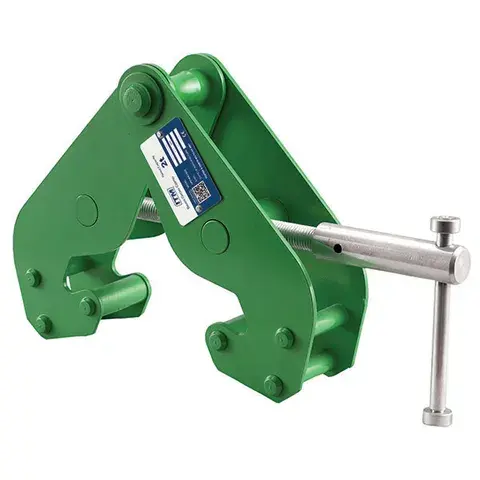

Beam Clamp, 2 Tonne, 230mm Beam Width ITM TM9121-02023

FEATURES:

  • 2000kg Rated capacity
  • Green colour-coded to W.L.L. for safety
  • Beam width to suit 75 - 230mm
  • Durable all steel construction
  • Color-coded to WLL for safety
  • Tested & certified to AS 4991

SPECIFICATIONS:

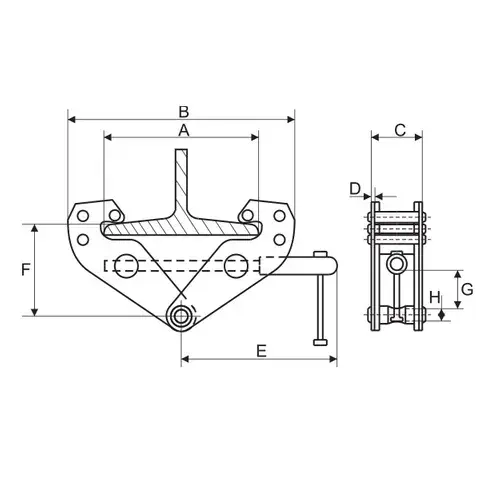

Weight  4.5KG
Dimension A 278mm
Dimension B (max) 380mm
Dimension B (min) 182mm
Dimension C  76mm
Dimension D  6mm
Dimension E 217mm
Dimension F (max) 150mm
Dimension F (min) 90mm
Dimesion G  25mm
Dimension H  21mm




Part Number/SKU: TM9121-02023

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TM9121-02023
Brand ITM
Shipping Weight 4.6000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.350m
Shipping Cubic 0.021875000m3
Unit Of Measure ea
