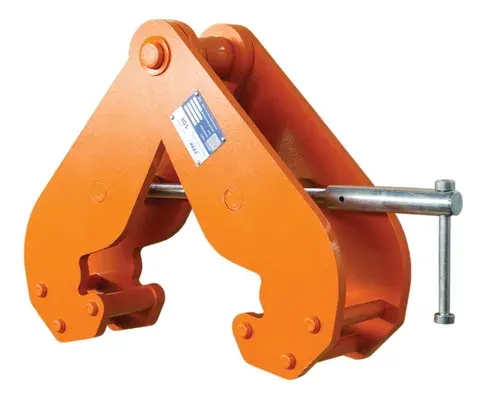

Beam Clamp, 10 Tonne, 320mm Beam Width ITM TM9121-10032

FEATURES:

  • 10,000kg Rated capacity
  • Orange color-coded to W.L.L. for safety
  • Beam width to suit 90 - 320mm
  • Durable all steel construction
  • Color-coded to WLL for safety
  • Tested & certified to AS 4991

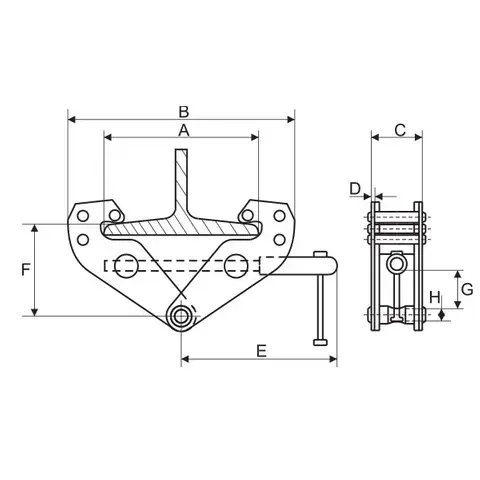

SPECIFICATIONS:

Weight 15.9KG
Dimension A (max) 356mm
Dimension B (max) 520mm
Dimension B (min)  250mm
Dimension C 120mm
Dimension D 8mm
Dimension E 285mm
Dimension F (max) 230mm
Dimension F  (min) 160mm
Dimension G 52mm
Dimension H 39mm




Part Number/SKU: TM9121-10032

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TM9121-10032
Brand ITM
Shipping Weight 16.0000kg
Shipping Width 0.350m
Shipping Height 0.350m
Shipping Length 0.450m
Shipping Cubic 0.055125000m3
Unit Of Measure ea
