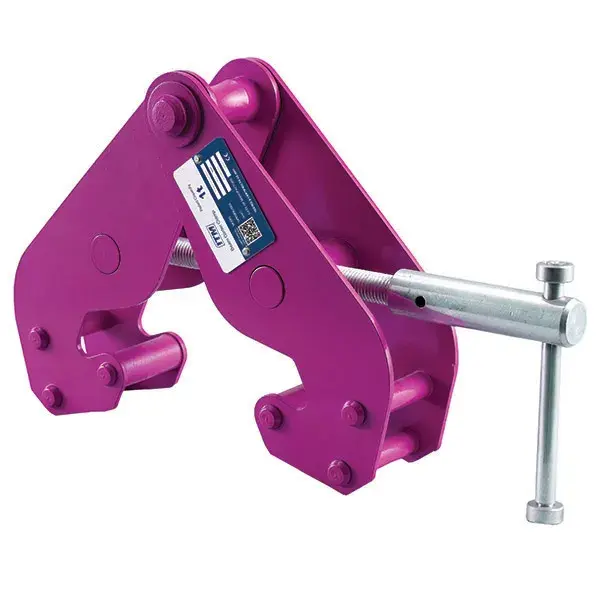

Beam Clamp, 1 Tonne, 230mm Width ITM TM9121-01023

FEATURES:

  • 1000kg Rated capacity
  • Violet color-coded to W.L.L. for safety
  • Beam width to suit 75 - 230mm
  • Durable all steel construction
  • Color-coded to WLL for safety
  • Tested & certified to AS 4991

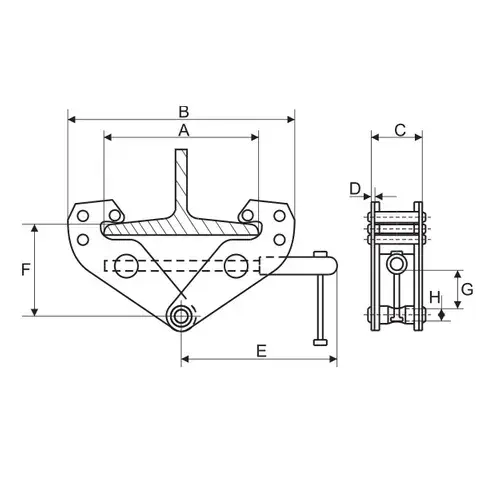

SPECIFICATIONS:

Weight 3.6KG
Dimension A (max) 278mm
Dimension B (max) 380mm
Dimension B (min) 182mm
Dimension C 64mm
Dimension D 4mm
Dimension E 217mm
Dimension F (max) 150mm
Dimension F (min) 90mm
Dimension G 26mm
Dimension H 19mm








Part Number/SKU: TM9121-01023

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TM9121-01023
Brand ITM
Shipping Weight 3.7000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.350m
Shipping Cubic 0.021875000m3
Unit Of Measure ea
