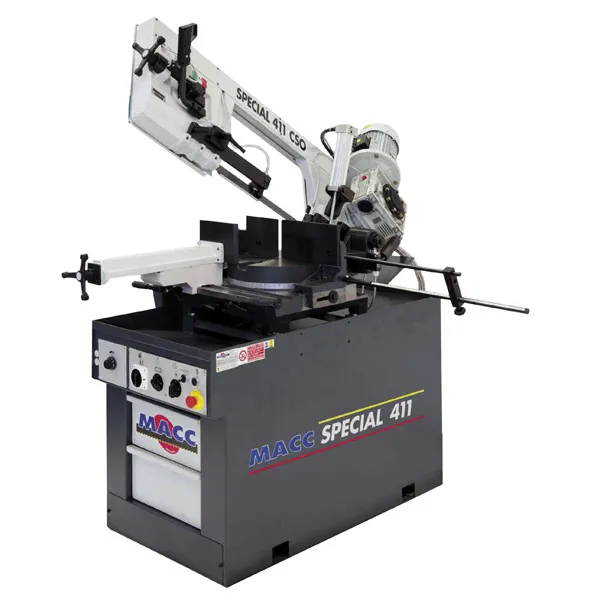

Bandsaw 300mm X 415V 3Phase Hyd Down Feed Macc  MB-411CSO-3

Features:

• Italian made quality.
• 2-way swivel head enables from 0° to 60° mitre cuts.
• Dual mode operation.
• - Trigger switch with manual down feed for small quick cuts.
• - Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
• Dual direction heavy-duty vice.
• Incorporated recirculating coolant system.
• Adjustable material stop for repetitive production.
• Safety emergency stop switch.
• Comes complete with stand & blade.
• Variable speed, three phase model available.

Specifications:

• Motor: 2hp Three Phase (415V)
• Blade Speed: 2 Speed 38 / 77 mpm
• Blade Size: 27mm x 0.9mm x 3200mm
• Weight: 530kg

90° Cutting Capacity:

• Round: 300mm
• Square: 280mm
• Rectangle: 400 x 200mm

45° Right Cutting Capacity:

• Round: 240mm
• Square: 220mm
• Rectangle: 240 x 130mm

60° Right Cutting Capacity:

• Round: 140mm
• Square: 140 x 140mm
• Rectangle: 140mm

45° Left Cutting Capacity:

• Round: 180mm
• Square: 160mm
• Rectangle: 180 x 110mm


Part Number/SKU: MB-411CSO-3

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
