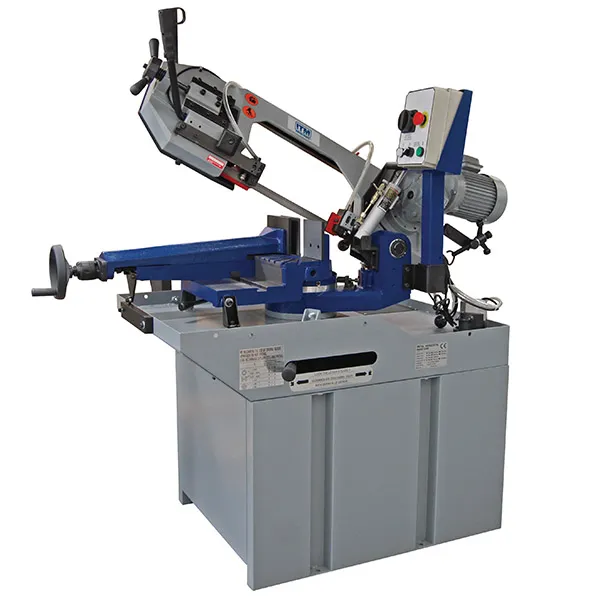

Bandsaw 227mm X 240V Single Phase Hyd Down Feed  ITM WP275DS-1

Features:

• 2-way swivel head enables from 0° to 60° mitre cuts.
• Dual mode operation.
• - Trigger switch with manual down feed for small quick cuts.
• - Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
• Dual direction heavy-duty vice.
• Incorporated recirculating coolant system.
• Brass chip brush to help prevent blade breakage.
• Adjustable material stop for repetitive production.
• Safety emergency stop switch.
• Comes complete with stand & blade.
• Optional blade tension gauge.
• Made in Taiwan.

Specifications:

• Motor: 1.5hp Single Phase (240V)
• Blade Speed: Single Speed 72mpm
• Blade Size: 27mm x 0.9mm x 2460mm
• Bed Height: 900mm
• Weight: 285kg

90° Cutting Capacity:

• Round: 227mm
• Square: 220mm
• Rectangle: 260 x 110mm

45° Right Cutting Capacity:

• Round: 150mm
• Square: 145mm
• Rectangle: 200 x 125mm

60° Right Cutting Capacity:

• Round: 90mm
• Square: 85mm

45° Left Cutting Capacity:

• Round: 110mm
• Box: 110mm
• Rectangle: 160 x 110mm

Part Number/SKU: WP275DS-1
