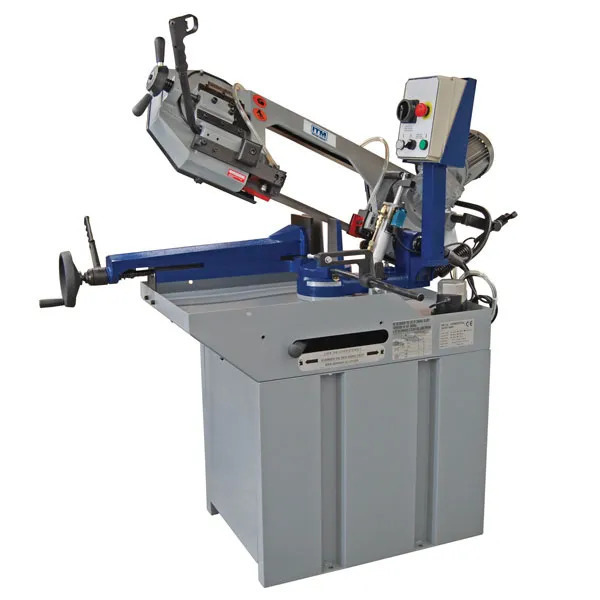

TRADEMASTER BANDSAW, 227MM CAP, SWIVEL HEAD, 1 SPEED 240V 1PH, HYD DOWN FEED WP270SH-1

FEATURES

  • Swivel head enables 0° to 60° mitre cuts.
  • Dual mode operation.
  • - Trigger switch with manual downfeed for small quick cuts.
  • - Control panel with fully adjustable hydraulic down feed.
  • & automatic shut-off at end of cut, for cutting larger material.
  • Incorporated recirculating coolant system.
  • Brass chip brush to help prevent blade breakage.
  • Adjustable material stop for repetitive production.
  • Comes complete with stand & blade

SPECIFICATIONS

  • Motor: 1.5HP Single Phase
  • Blade: Speed Single Speed 72mpm
  • Blade Size: 27mm x 0.9mm x 2455mm
  • Bed Height: 885mm
  • Weight: 216kg

Cutting capacity:

  • 90° - Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
  • 45° Right - Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 145mm
  • 60° Right - Round: 90mm / Box: 85 x 85mm


Part Number/SKU: WP270SH-1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Specifications:

Motor: 1.5HP Single Phase
Blade Speed: Single Speed 72mpm
Blade Size: 27mm x 0.9mm x 2460mm
Bed Height: 885mm
Weight: 216kgs

Cutting Capacity:
90 Round: 227mm
90 Square: 220 x 220mm
90 Rectangular: 260 x 110mm
45 Round: 150mm
45 Square: 145 x 145mm
45 Rectangular: 200 x 145mm
60 Round: 90mm
60 Square: 85 x 85mm

SKU WP270SH-1
Brand ITM
Shipping Weight 216.0000kg
Shipping Width 1.200m
Shipping Height 1.200m
Shipping Length 1.200m
Shipping Cubic 1.728000000m3
Unit Of Measure ea
