Artisan TIG 320 W BT Weld 652320

DESCRIPTION:

  • Duty Cycle: 60% @ 320A
  • Generator: 32 Kva
  • Plate Thickness:  Max. 16mm
  •  Material:  Mild Steel, Stainless Steel, Brass / Copper, Aluminium

PROCESS:

  • TIG AC/DC PULSE HF
  • TIG LIFT DC
  • STICK (MMA) AC/DC

FEATURES:

  • 320A Output
  • HF/LIFT TIG AC/DC Welder
  • 5" Colour LCD Screen
  • Adjustable Pulse
  • AC/DC Waveforms
  • 2T/4T Trigger Latching
  • Weld Parameter Storage
  • Foot Control Ready

Material

  •  Mild Steel
  •  Stainless Steel
  •  Brass / Copper
  •  Aluminium

SPECIFICATIONS:



Primary Input Power                        3 Phase 415V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min 60% @320A
100% @250A
                                                             TIG                               MMA
                                                            AC            DC           AC           DC
Effective Current (A)         14.2   14.9  18.5 19.6
Rated Input Current (A)   18.4   19.3  23.9 25.4
Rated Input Power (KW)    12.8   13.4   16.6 17.5
I Max (A)                                            18.6        17.4          24.6           23.2
I eff (A)  14.4 13.5 19.1 18.0
Tungsten Diameter Range                1.0-3.2mm
Electrode Diameter Range 1.6-5.0mm
Protection/Insulation Class IP21S/S
Power Factor/Efficiency 0.68 (TIG) 0.7 (MMA)/90.3%
Dimensions L71 x W27 x H49 cm
Weight 31.1 kg
Warranty 3 year
Part Number 652220

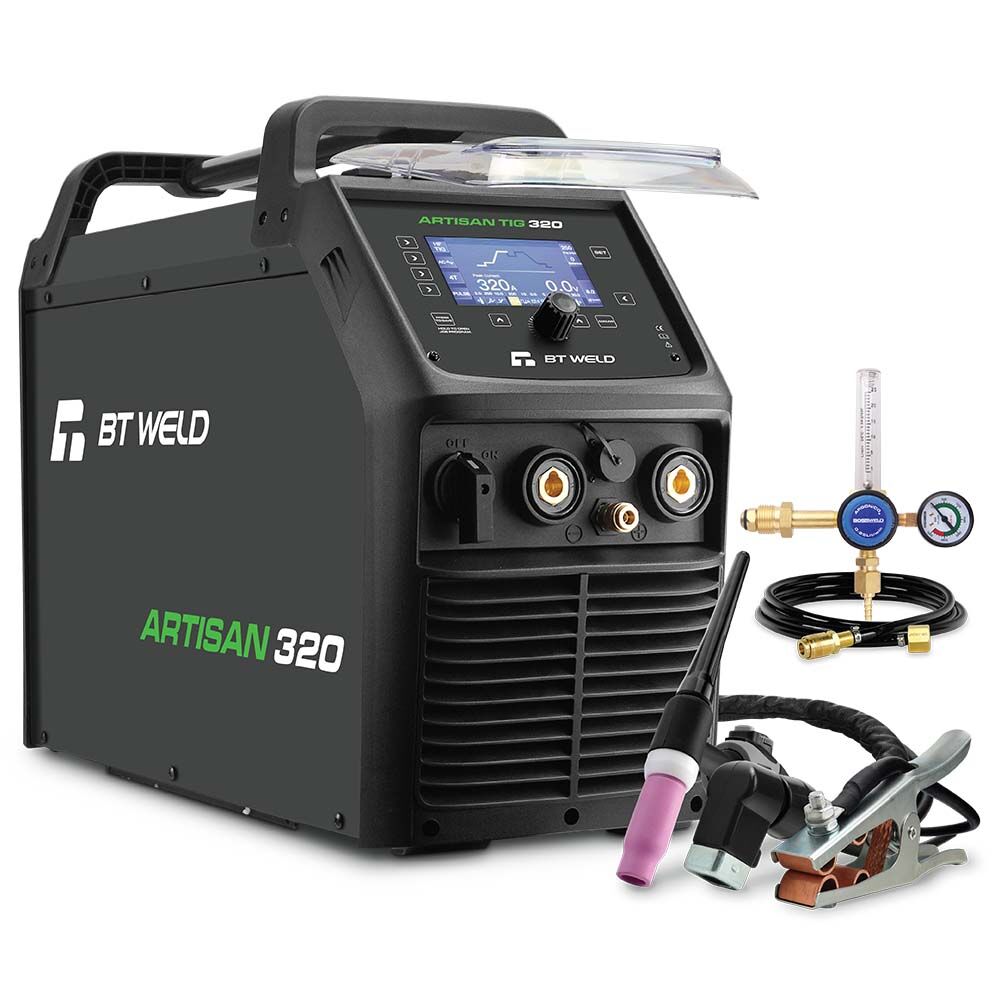

STANDARD PACKAGE INCLUSIONS:

  • BT Artisan 320 TIG Welder 415V:   652320
  •  26 Series Current Control TIG Torch 4Mt:  95.26F.4.1.CC12A
  •  Twist Lock Electrode Holder 3Mt:  500044
  •  Earth Clamp 300Amp 3Mt:  500060
  •  Argon Regulator with Flowmetre:  400209
  •  Quick Connect Gas Hose 2Mt:  619000

Part Number/SKU: 652320

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 652320
Brand BT Weld
Shipping Weight 35.0000kg
Shipping Width 0.450m
Shipping Height 0.500m
Shipping Length 0.750m
Shipping Cubic 0.168750000m3
Unit Of Measure ea
