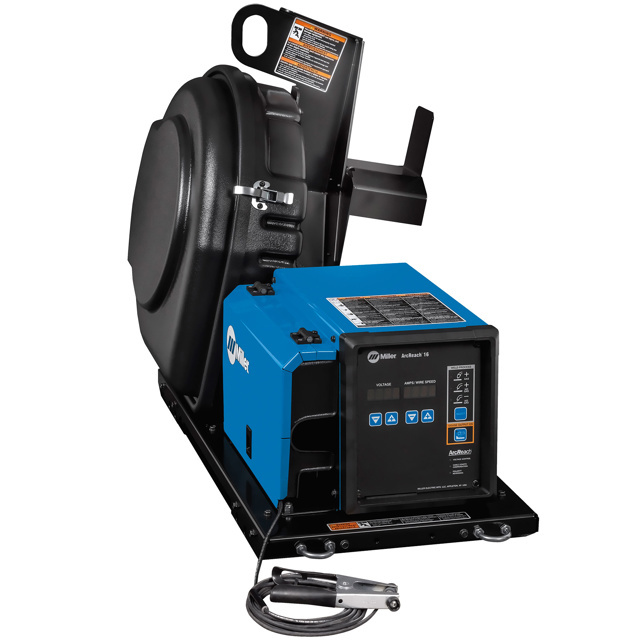

ArcReach 16 Wire Feeder Miller MR301619

DESCRIPTION:

For Superior Wire Feed Speed Accuracy & Consistency
The ArcReach® 16 wire feeder model has a simple interface that allows operators to adjust parameters at the point of use without control cords. With a push of a button, you can switch between welding and gouging without swapping leads or disconnecting. It can also handle large-diameter wire (2.4mm).

PROCESS:

MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc (CAC-A) Cutting & Gouging Rated: 9.5mm Carbons

APPLICATIONS:

  • Construction
  • Shipbuilding
  • Heavy manufacturing
  • Mining
  • Mro - Maintenance/Repair

FEATURES:

  • Easy Process Changeover:  Simply connect the ArcReach 16 wire feeder to your weld lead and you are ready to go. Switch between welding and gouging with a push of a button with no need to swap leads or disconnect the wire feeder with isolated outputs.
  • Weld With up to 27kg Spools:  Weld with up to 27kg spools and a large 2.4mm wire diameter to minimize downtime and maximize productivity.
  • Durable Design Reduces Downtime: The elimination of feeder control cords and field assembly IP23 rating provides a solid solution to last in harsh environments.
  • Sets the Standard for Performance:  Heavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next, providing consistent arc quality. Wide voltage range for small and large wires with no contactor chatter or arc outages.
  • Integrated Gouging Stud on Wire Feeder: An isolated gouging stud allows easy connection for gouging at the point of use, eliminating the need to disconnect the wire feeder and swap leads.

SPECIFICATIONS

Input Power



3 Phase
Input Welding Circuit Rating 450A at 100% Duty Cycle
500A at 60% Duty Cycle
CAC-A 600A at 40% Duty Cycle
Wire Feed Speed
50-780 IPM (1.3-19.8m/min) dependent on arc voltage
Wire Type and Diameter Capacity Solid Wire 0.9-1.9 mm
Flux-Cored 1.1-2.4 mm
Max. Spool Size Capacity
457 mm
27.2 kg

Dimensions (mm)


Base Feeder -  H: 388 mm W: 424 mm D: 833 mm
Shop Cart - H: 508 mm W: 632 mm D: 922 mm
Field Roller -  H: 716 mm W: 505 mm D: 1,084 mm
Weight
Base Feeder 45.8 kg
Shop Cart 54.4 kg
Field Roller 55.7 kg




Part Number/SKU: MR301619

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU MR301619
Brand Miller
Unit Of Measure ea
