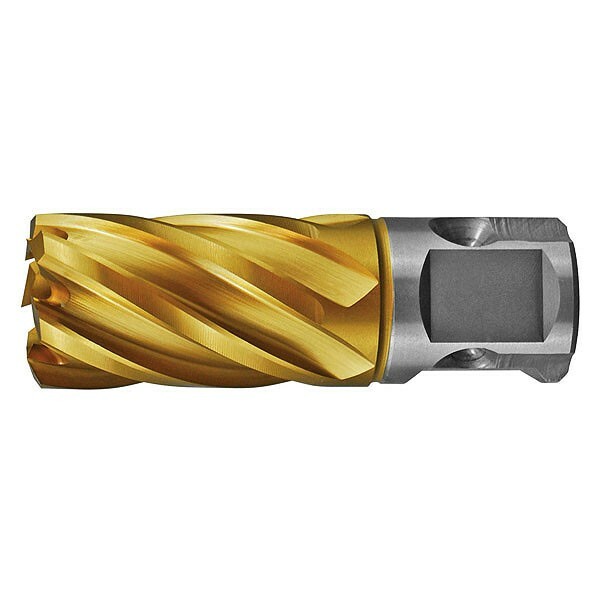

Annular Cutter 13mm Diameter 25mm Depth Uni Shank Gold Series Holemaker AT1325

Features:
Titanium Nitride Coating - The Titanium Nitride coating significantly increases the tool life by providing the following benefits:
Increased surface hardness to 85HRC
Ceramic surface, reducing friction by up to 30%
Especially resistant to cold welding
Suitable for cutting a wide range of materials
M2AL High Speed Steel Material - M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
Step Hardened Process - This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.
Multi-Cut Geometry - Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centering.
Fully Ground With Internal Relief - This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.
Universal Shank - 19.05 mm (3/4") Universal Shank with 2 flat sections to suit most magnetic base drilling machines.
Specifications:
Diameter 13 mm
Depth of Cut 25 mm
Pilot Pin Diameter 6.34 mm
Shank Diameter 3/4" (19.05 mm)

Part Number/SKU: AT1325

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU AT1325
Brand Holemaker
Shipping Weight 0.8000kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.040m
Shipping Cubic 0.000160000m3
Unit Of Measure ea
