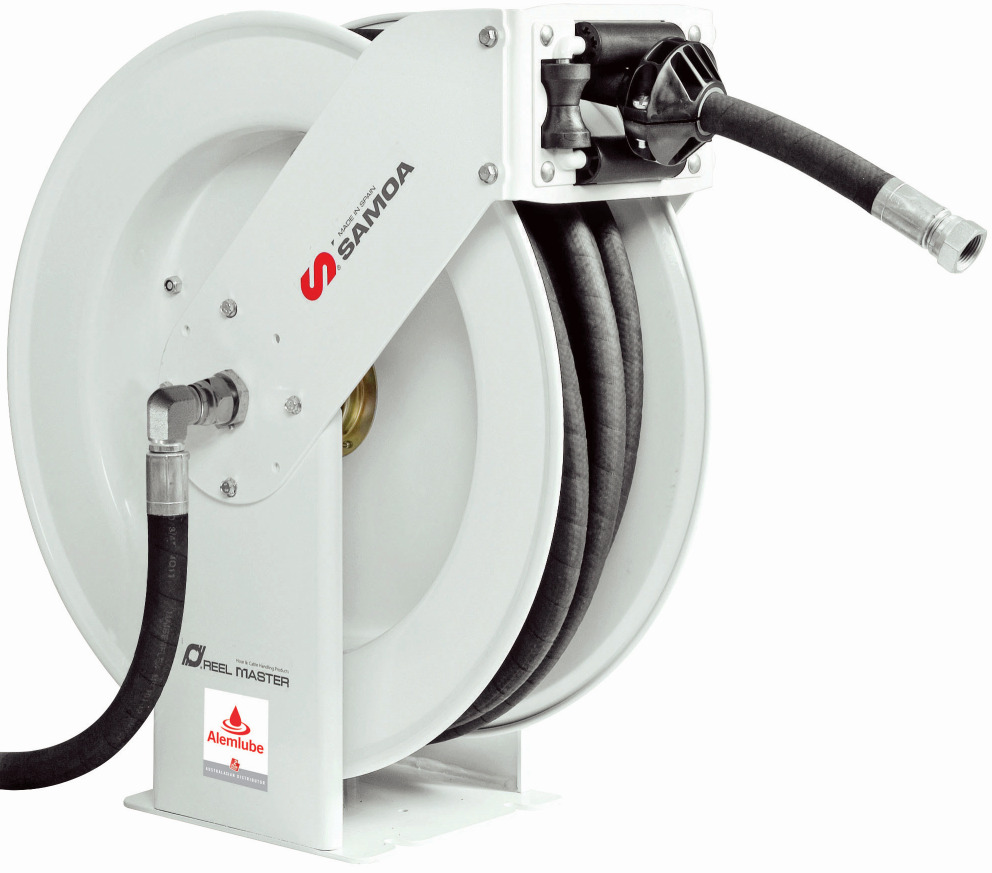

Air Reel Open High Capacity 20 Metres x 1/2" Alemlube 505232

The new Alemlube Series of Spring Rewind Hose Reels are available in low, medium and high pressure. Medium pressure hose reels are supplied standard with S.A.E. 100R1 at one wire braid hose suitable for air, water or oil application in auto and truck workshops.

High pressure reels are supplied standard with S.A.E. 100R2 at two wire braid hose suitable for grease applications.

• The adjustable arms allow for floor, wall or ceiling mounting according to needs. The hose reel drum is sturdy and practical with stiffening ribs and flange edges.
• Samoa reel complete with 20m x 1/2" hose & hose stop
• Includes 0.8m x 1/2" bspm inlet hose
• Maximum working pressure: 1,500psi (Hose burst pressure: 6,000psi)
• Rated to 120c
• Heavy duty positional double arms, all metal reinforced construction with 3/4" full port shaft
• Forged brass shaft for corrosion free & leakproof
• Dimensions: 560x594x227mm
• Weight: 36kg

Part Number/SKU: 505232

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
