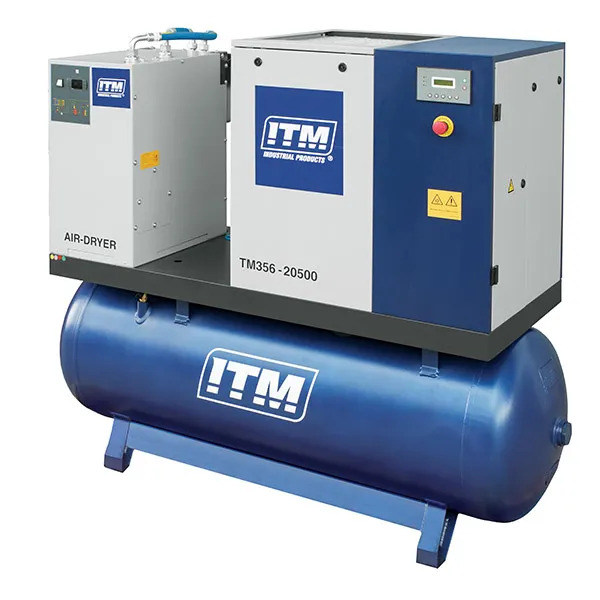

Air Compressor Rotary Screw With Dryer 3 Phase 20HP 500 Litres FAD 1980 ITM TM356-20500

FEATURES

• Complete ready to go package with screw, tank, dryer and pre/post filters included.
• Fully sealed cabinet with soundproofing and noise-reducing partitions to minimise noise.
• Extra large surface cooler allows unit to operate at ambient temperatures up to 46° C .
• Premium filtration with ultra low oil carry over meaning less contamination resulting in cleaner air.
• New generation Air End design together with precision manufacturing ensures constant high performance.
• Intelligent control system with self-service timing management.
• All the main components are easily accessible, ensuring fast and simple maintenance.
• Warranty: 2 Years on pump and 1 year on all other components.
• Nationwide service and warranty supported by Air Technology Group and ITM service network.

SPECIFICATIONS

• Pump Type: Screw
• Motor: 15kW (20HP) - Three Phase 415V
• Tank Capacity: 500 L
• Max Pressure: 147 PSI (10 Bar)
• Free Air Delivery: 1980 L/min (70 CFM)
• Noise: 73 dBA
• Weight: 465Kg
• Compressor Dimensions: 188cm L x 65cm W x 158cm H

Part Number/SKU: TM356-20500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
