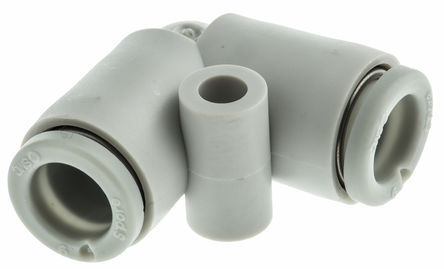

KQ2L08-00A Union

Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
　Insertion force: Max. 30% reduction
　Removal force: Max. 20% reduction
・Compact and lightweight
　Dimensions height direction 24% shorter
　Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

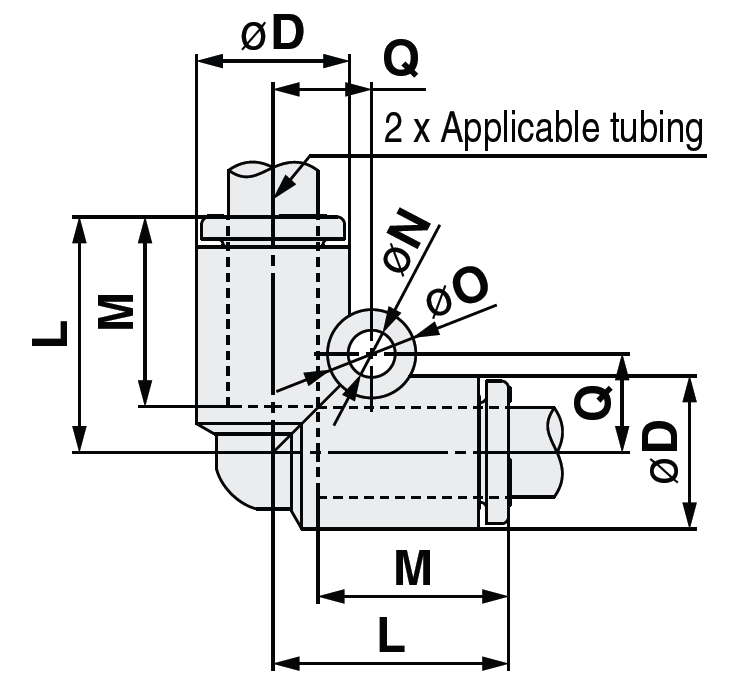

Applicable tubing O.D. (mm)	Model	Note) øD	L	Q	M	øO	øN	Effective area (mm2)		Min. port size	Weight (g)
								Nylon	Urethane
ø8	KQ2L08-00A	13.2	18.2	8.4	14.2	8	4.2	21.6	14.9	6	4.7

Part Number/SKU: KQ2L08-00A

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	KQ2L08-00A
Brand	SMC
Shipping Weight	0.2500kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
