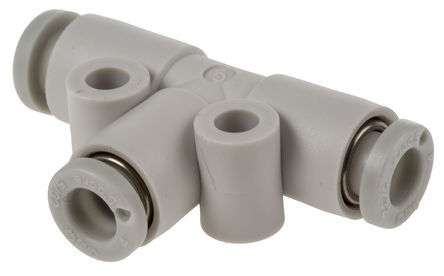

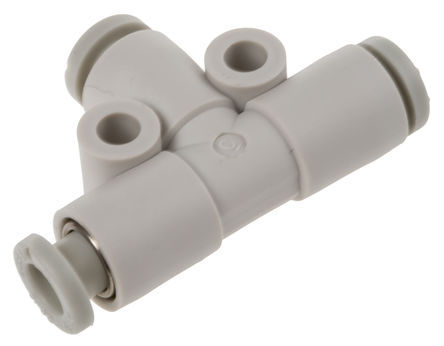

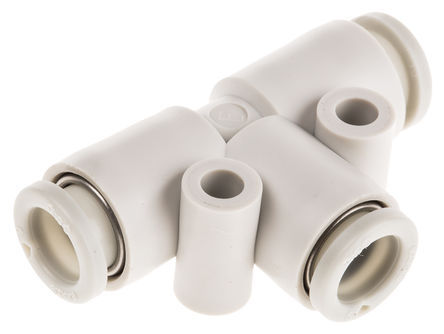

6mm TEES Union - KQ2T06-00A1

Features:

Possible to use in vacuum to –100 kPa.
Improved tube insertion/removal
Insertion force: Max. 30% reduction
Removal force: Max. 20% reduction
Compact and lightweight
Dimensions height direction 24% shorter
Dimensions horizontal direction 23% shorter, Weight 57% lighter
Body type: Totaled 51 models
Thread material/Surface treatment(Treated or Non-treated): 2 types
Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

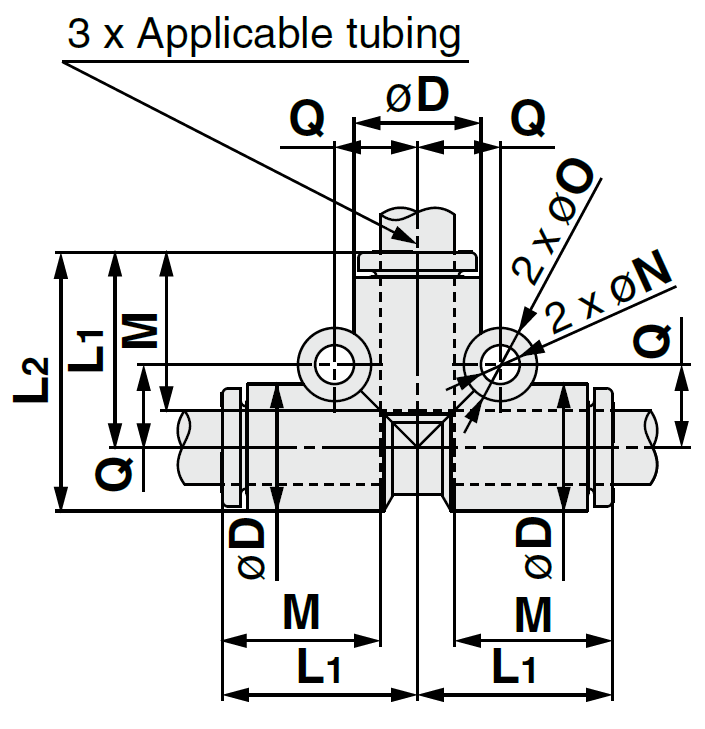

Applicable tubing O.D. (mm)	Model	Note) øD	L1	L2	M	Q	øO	øN	Effective area (mm2)		Min. port size	Weight (g)
									Nylon	Urethane
ø6	KQ2T06-00A1	10.4	16.3	21.5	13.3	6.8	6	3.2	13.4	10.6	4.5	3.8

Part Number/SKU: KQ2T06-00A1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	KQ2T06-00A1
Brand	SMC
Shipping Weight	0.2500kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
