KQ2L06-M6N1 6 x M6

Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
　Insertion force: Max. 30% reduction
　Removal force: Max. 20% reduction
・Compact and lightweight
　Dimensions height direction 24% shorter
　Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

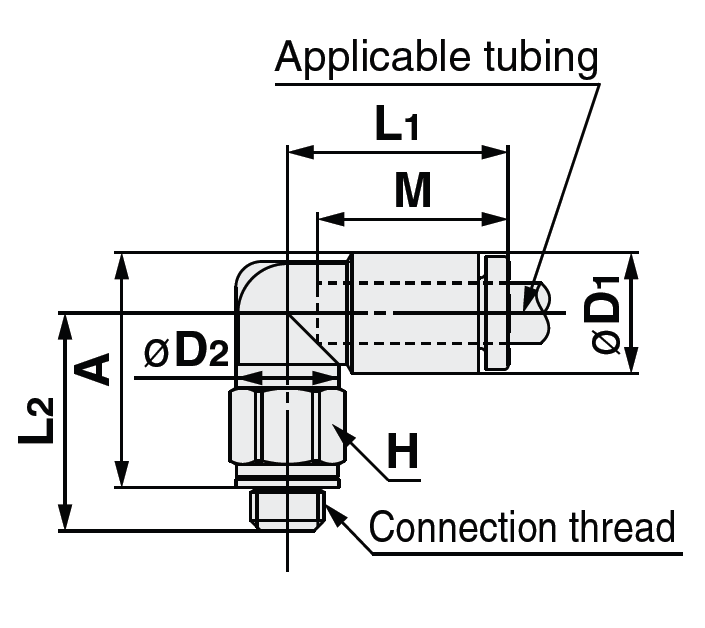

Specifications:

Applicable
tubing O.D.
(mm)		 Connection
thread
M		 Model H
(Width
across
flats)		 Note)
øD1		 øD2 L1 L2 A M Effective area
(mm2)		 Min.
port
size		 Weight
(g)
Nylon Urethane
ø6 M6 x 1.0 KQ2L06-M6N1 8 10.4 7 14.5 17.5 18.7 13.3 3.5 3.5 2.5 4.3




Part Number/SKU: KQ2L06-M6N1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2L06-M6N1
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
