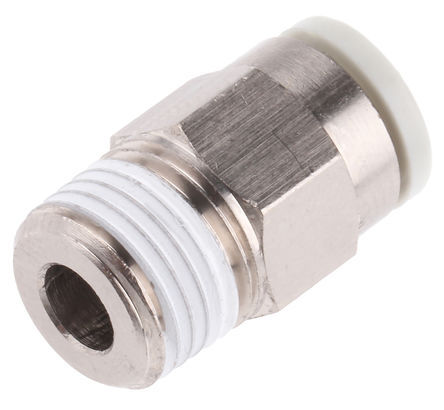

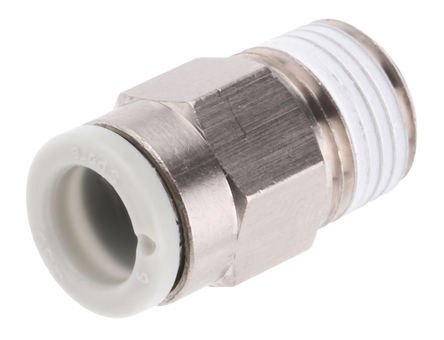

4mm STRAIGHTS 4 x 1/4 - KQ2H04-02NS1

Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
　Insertion force: Max. 30% reduction
　Removal force: Max. 20% reduction
・Compact and lightweight
　Dimensions height direction 24% shorter
　Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

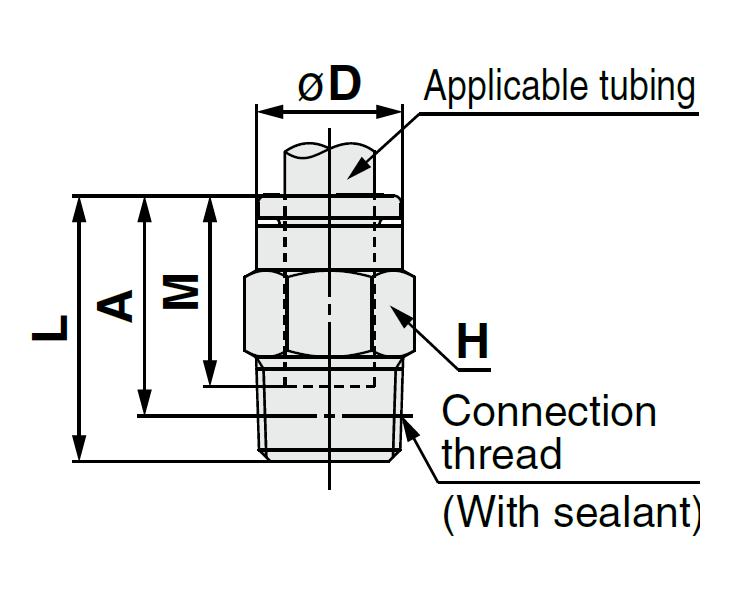

Applicable tubing O.D. (mm)	Connection thread R	Model	H (Width across flats)	øD	L	A*	M	Effective area (mm2)		Min. port size	Weight (g)
								Nylon	Urethane
ø4	1/4	KQ2H04-02NS1	14	7.7	16.7	12	13.3	4.8	3.4	3	14.6

Part Number/SKU: KQ2H04-02NS1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	KQ2H04-02NS1
Brand	SMC
Shipping Weight	0.2500kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

4mm STRAIGHTS 4 x 1/4 - KQ2H04-02NS1

Features:

Specifications:

Applicable tubing O.D. (mm)	Connection thread R	Model	H (Width across flats)	øD	L	A*	M	Effective area (mm2)		Min. port size	Weight (g)
								Nylon	Urethane
ø4	1/4	KQ2H04-02NS1	14	7.7	16.7	12	13.3	4.8	3.4	3	14.6
