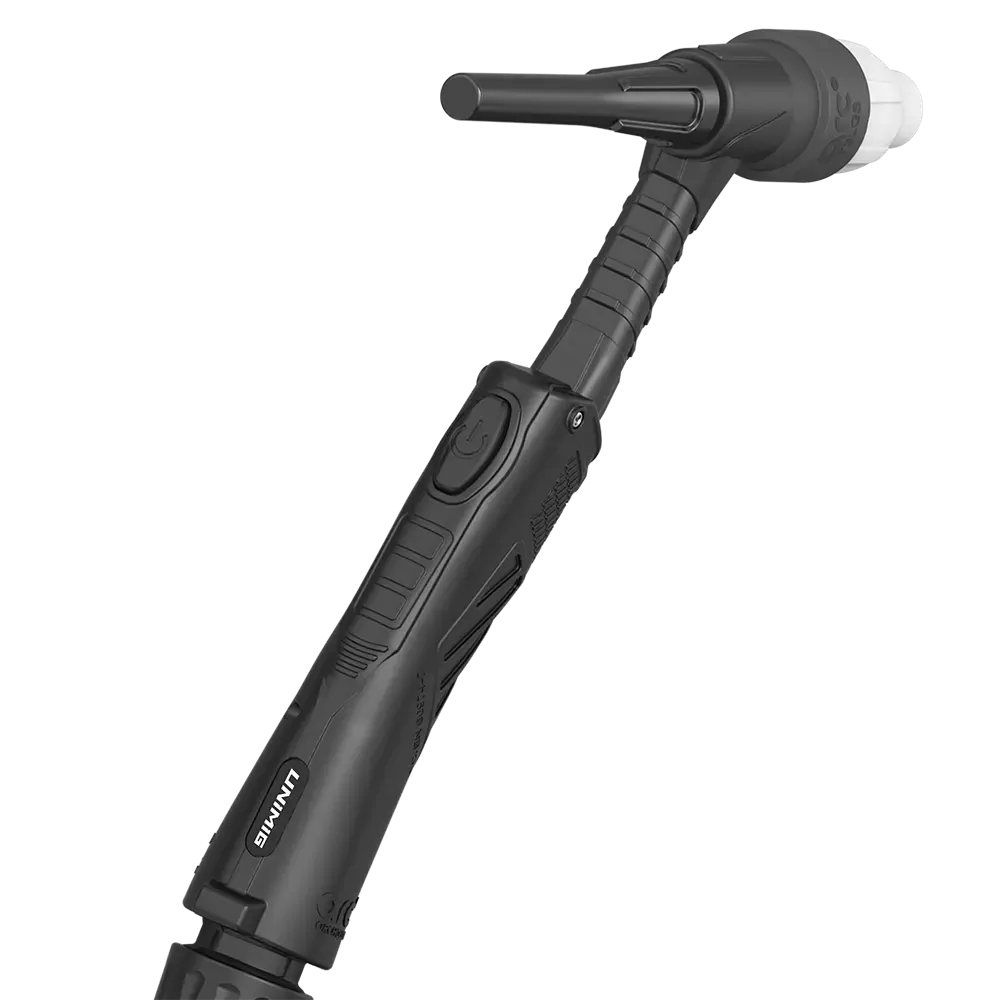

4 Metres T3 Air-Cooled Tig Torch Unimig UMT3F4M

DESCRIPTION:

Get the ultimate performance in any environment with the Arc Torchology T3 Torch, equipped with exclusive torch technologies and a flex-head.

FEATURES:

  • Force-cool technology: Stay cooler for longer. A series of passages and wells are built into the consumables, effectively force-cooling the collet, maximising conductivity and extending consumable life
  • Heat Zone Isolation Technology: A unique external barrier, using air pockets in the torch's structure, isolates heat transferred from the ceramic cup, keeping the torch running cooler and enhancing its power-to-weight performance ratio.
  • Tungsten Release System:  Instantly release your tungsten with a twist. With a 180° twist of the back cap, you get a trouble-free extension of the electrode without needing to remove any other parts to extend it.
  • 35% Better Power-to-Weight Ratio:  Get better performance than a 26 Series torch in a torch the same size as a 17 Series.
  • Longer Consumable Life:  Get superior life out of every consumable. Designed for maximum performance, you’ll get 20x longer life with Arc Torchology consumables.
  • Ceramic Performance:  The Arc Torchology ceramic cups lasted up to 5x longer, withstanding the maximum amperage for 200 hours vs the WP26's 40 hours.
  • Collet Performance: The Arc Torchology collets lasted up to 10 times longer, withstanding the maximum amperage for 100 hours compared to the WP26's 10 hours.
  • Gas Lens Body Performance:  The Arc Torchology gas lens body lasted up to 20x longer, withstanding the maximum amperage for 600 hours vs the WP26's 30 hours.
  • Customisable Controls:  Weld the way you want to with a range of interchangeable torch potentiometers for every style.
  • Standard: A versatile all-rounder, the standard TIG consumables are great for most welds.
  • Gas Lens:  The gas lens consumables are perfect for those jobs where more gas or a longer stickout is needed without the risk of contamination.

SPECIFICATIONS:

Cooling Method Air-Cooled
Maximum Output 240A
Duty Cycle @400C-DC 35% @ 240A
Duty Cycle @ 400C-AC 35% @ 170A
Length(m) 4
Tungsten Range 1.0-4.4mm
Dinse Size 35/50
Standard EN 60974-7




Part Number/SKU: UMT3F4M

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU UMT3F4M
Brand Unimig
Shipping Weight 4.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
Unit Of Measure ea
