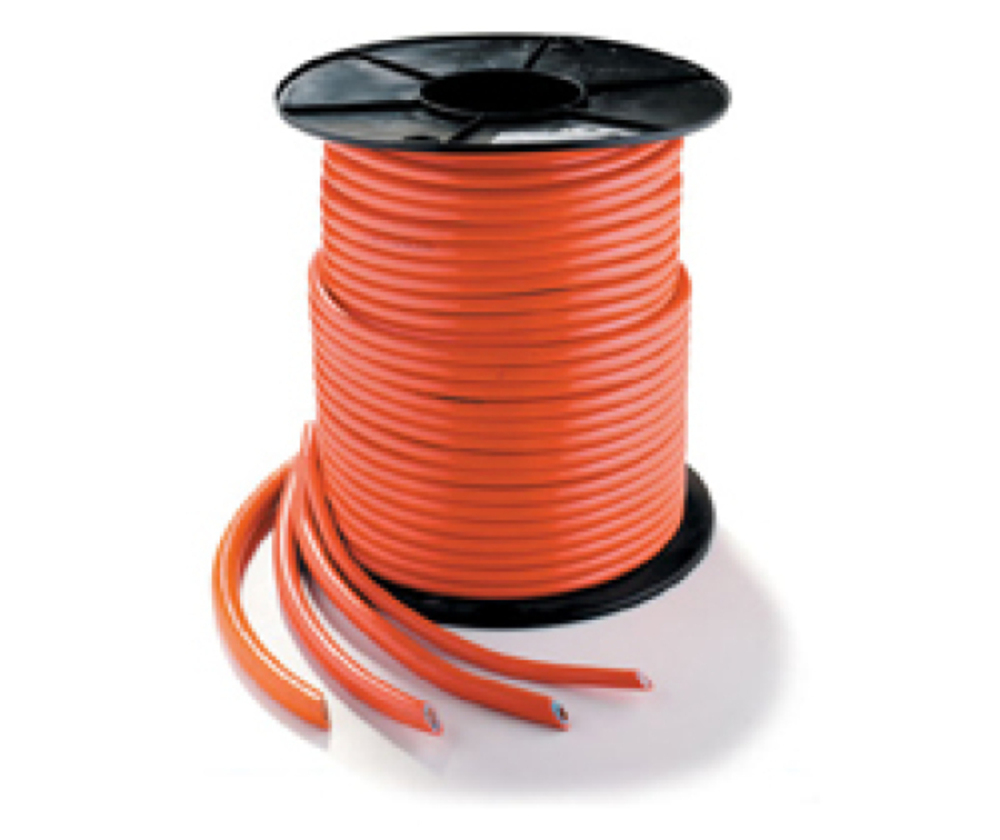

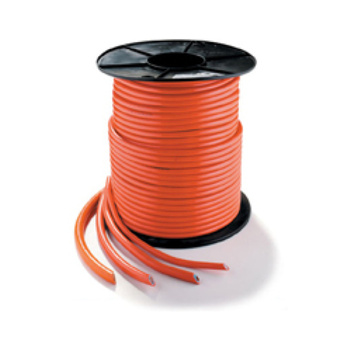

35mm Sq Welding Cable ZW35

Used for welding power & switchboard applications. Consists of high quality copper wire stranding & has double insulation for better resistance in heavy working conditions.

Price as per Meter

Features
Double Insulated
Highly Flexible
Meter Marked
Abrasion Resistant Outer Layer

Applications
Suiting Mine Sites
Welding Generators
Electrical Switchboards

Specifications

Part No Nom Area mm2 Stranding No/mm Nom. 0/D mm Nom Insulation Thickness mm Nom Sheath Thickness mm Amp Rating 100% duty cycle Amp Rating duty cycle Amp Rating 3 duty cycle Maximum Resistance at 20°C 0/Km
ZW 10 10 318/0.20 8.2 0.9 1.1 87 110 160 1.91
ZW16 16 511/0.20 9.3 0.9 1.1 115 150 215 1.21
ZW25 25 779/0.20 10.7 0.9 1.1 155 200 285 0.78
ZW35 35 1102/0.20 11.9 0.9 1.1 195 250 355 0.554
ZW50 50 1561/0.20 13.6 1 1.2 250 320 450 0.386
ZW70 70 2220/0.20 15.6 1.1 1.3 310 400 560 0.272
ZW95 95 2960/0.20 18.2 1.2 1.4 375 485 685 0.206
ZW120 120 1665/0.30 20.4 1.4 1.4 440 525 750 0.161
ZW150 150 2035 /0.30 22.1 1.5 1.5 520 625 885 0.129
ZW185 185 1406/0.40 24.2 1.6 1.6 585 705 995 0.106
ZW240 240 1830/0.40 27.2 1.7 1.7 700 840 1190 0.0801
ZW300 300 2318/0.40 31.5 2.4 1.9 810 970 1385 0.0641

National Plus Guarantee



Quality Products at extraordinary rates. We choose from a range of dependable brands, that have proven that they can get the job done.

Our purchasing team negotiates with a variety of suppliers to deliver you quality products at affordable rates.

Seen a better price, or do you have any compliments or complaints? Contact us directly for after sales support and we’ll work together to solve any problems.


Alternative SKU: 500020

Part Number/SKU: ZW35

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU ZW35
Brand National Plus
Shipping Weight 2.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
