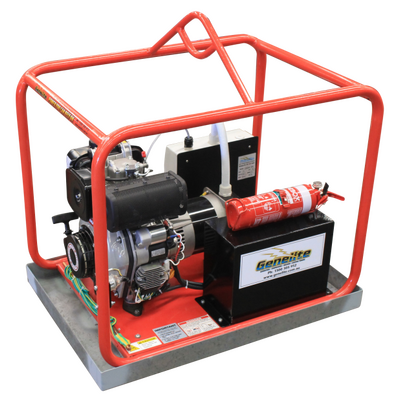

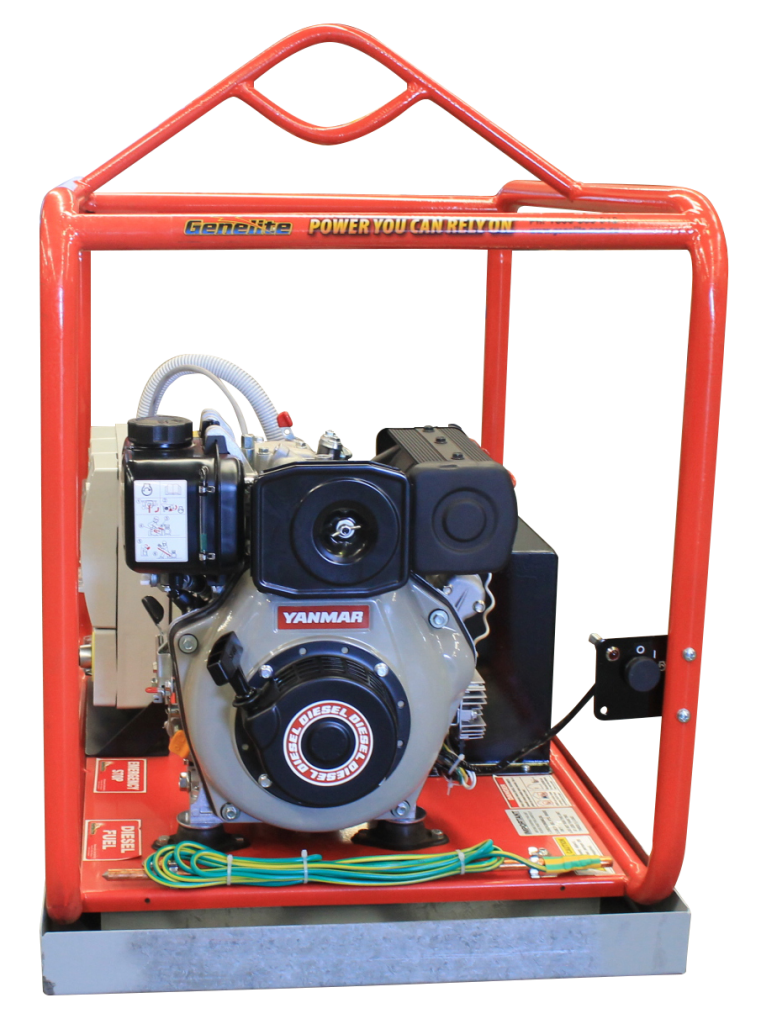

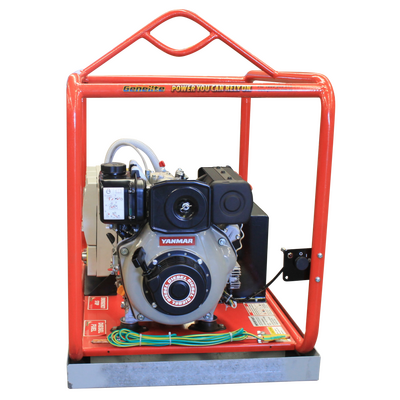

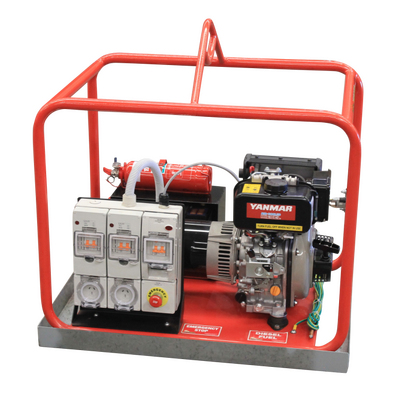

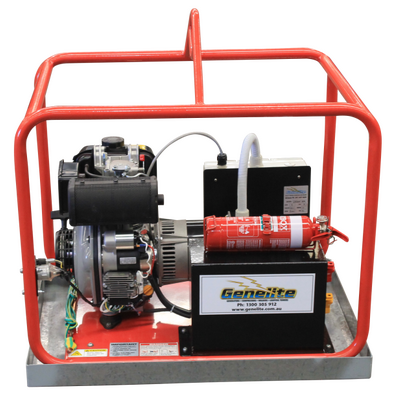

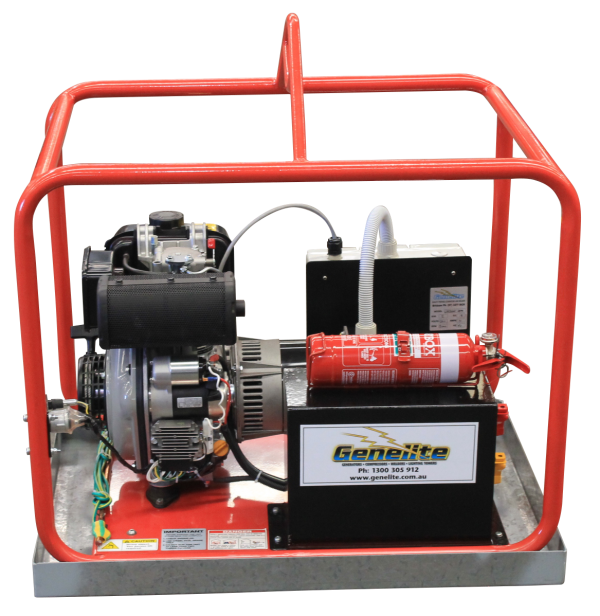

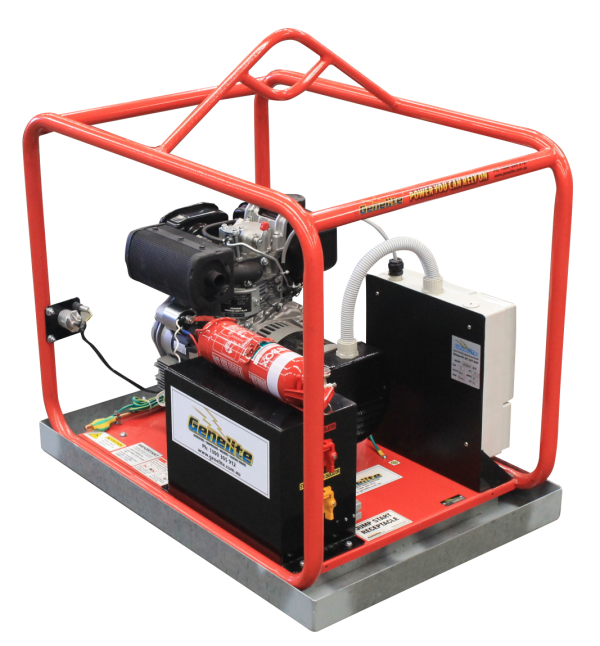

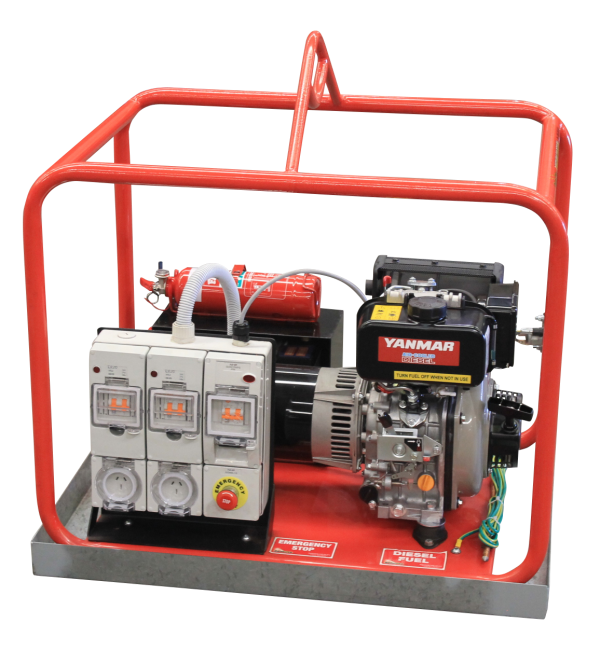

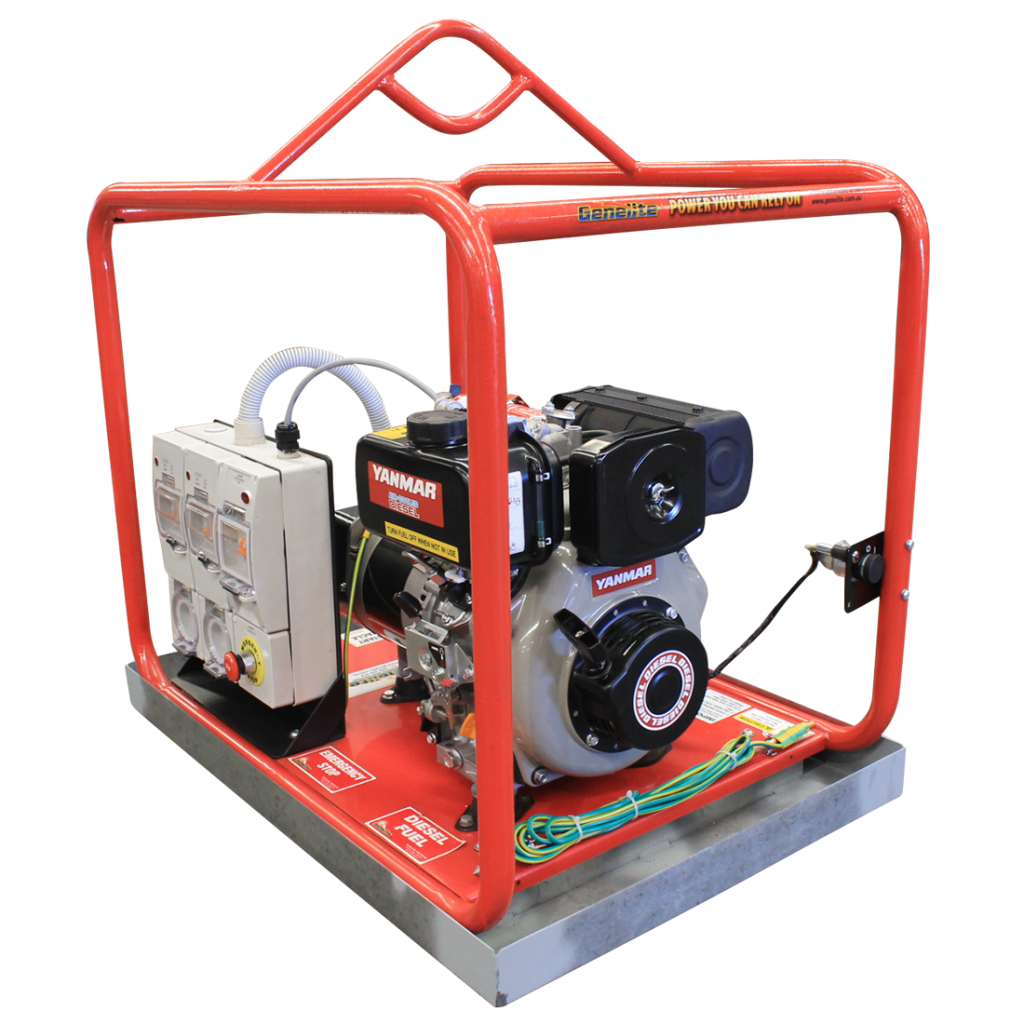

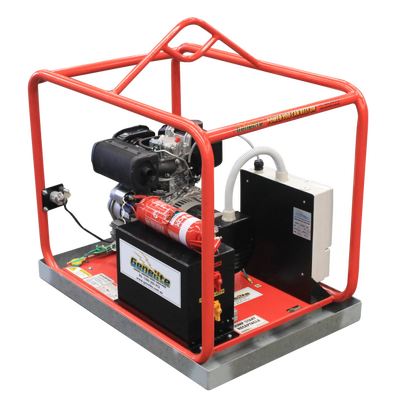

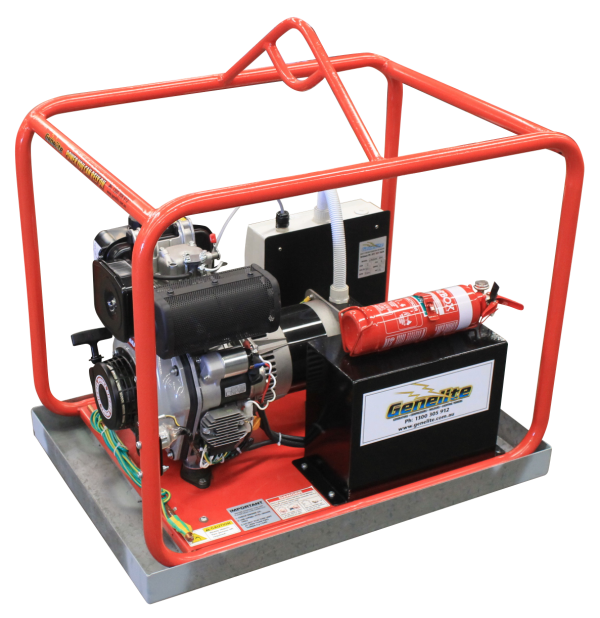

2.2kVA Yanmar GYD2000E Mine Spec

DESCRIPTION:

Ideal for the man on the land, or for construction or mining, the Genelite range of heavy-duty portable diesel generators using quality industrial Yanmar engines are up for the job no matter how big or small.

SPECIFICATIONS:

ENGINE:

MANUFACTURER Yanmar
ENGINE MODEL L48 AE-DEG
TYPE & CYLINDER O.H.V. Single Cylinder
STARTING Recoil & Electric Start
RUN TIME 3.12hr@ 100%, 4.1hr@ 75%
FUEL Diesel
CUBIC CAPACITY 296cm3
HP 3000 RPM COUNT 3.8HP
OIL CAPACITY 1.1L

TECHNICAL:

MODEL GYD2000-Mine Spec
TYPE Portable
FREQUENCY 50Hz
PHASE/VOLTAGE 1/240

ADDITIONAL INFORMATION:

OUTLETS 2 x 15amp 240V IP66 outlets with C/B & RCD
FRAME Heavy duty roll frame

ALTERNATOR:

ALTERNATOR BRAND Mecc Alte
TYPE Brushless
HARMONIC DISTORTION Less than 5%
INSULATION CLASS Class H

DIMENSIONS:

LENGTH 87cm
WIDTH 70cm
HEIGHT 60cm
WEIGHT 75kg

INCLUSIONS:

  • 2xIP56 rated outlets, circuit breaker & RCD protection
  • 1 kg fire extinguisher
  • Bunded tray, centre lift & earth stake
  • Sealed battery & covered box
  • Lockable starter motor & battery isolator
  • Jump start receptacle
  • Drip tray and emergency stop
  • BMA Certification Optional

Part Number/SKU: GYD2000E-MineSpec

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU GYD2000E-MineSpec
Brand YANMAR
Shipping Weight 75.0000kg
Shipping Width 0.700m
Shipping Height 0.600m
Shipping Length 0.870m
Shipping Cubic 0.365400000m3
Unit Of Measure ea
