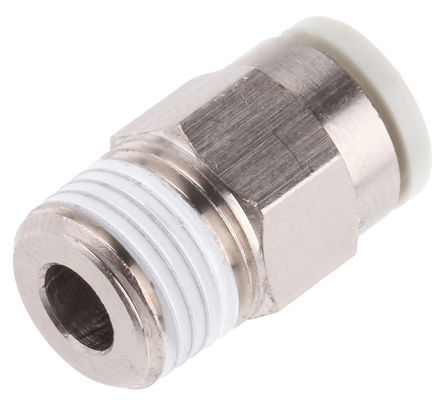

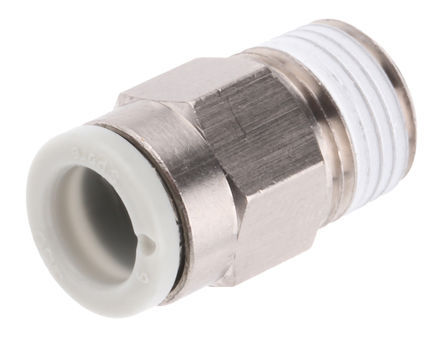

KQ2H12-03NS 12 x 3/8

Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
　Insertion force: Max. 30% reduction
　Removal force: Max. 20% reduction
・Compact and lightweight
　Dimensions height direction 24% shorter
　Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

Applicable tubing O.D. (mm)	Connection thread R	Model	H (Width across flats)	øD	L	A*	M	Effective area (mm2)		Min. port size	Weight (g)
								Nylon	Urethane
ø12	3/8	KQ2H12-03NS	19	18.2	25.9	20.8	17	58.3	46.1	9	25.2

Part Number/SKU: KQ2H12-03NS

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	KQ2H12-03NS
Brand	SMC
Shipping Weight	0.2500kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
