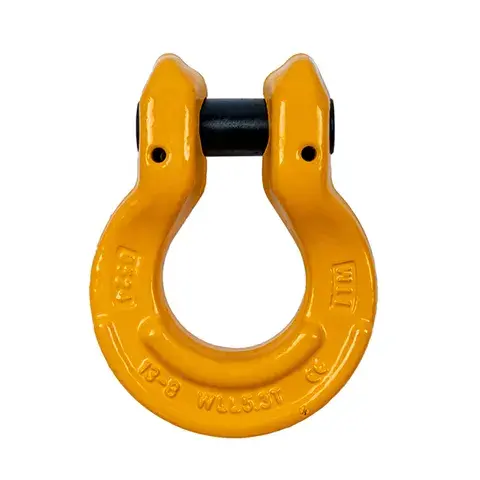

10mm Chain Clevis Omega Link ITM TM9804-04410

FEATURES:

• Premium-grade heat-treated alloy steel
• Specifications, batch, and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776

SPECIFICATIONS:

Chain Size (mm):           10
W.L.L. (t):                        3.15
Dimension A (mm):         12.5
Dimension B (mm):         62
Dimension C (mm):         16
Dimension Ø (mm):         31
Dimension H (mm):         40.5
Dimension L (mm):          87
Dimension K (mm):         26

Part Number/SKU: TM9804-04410

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
