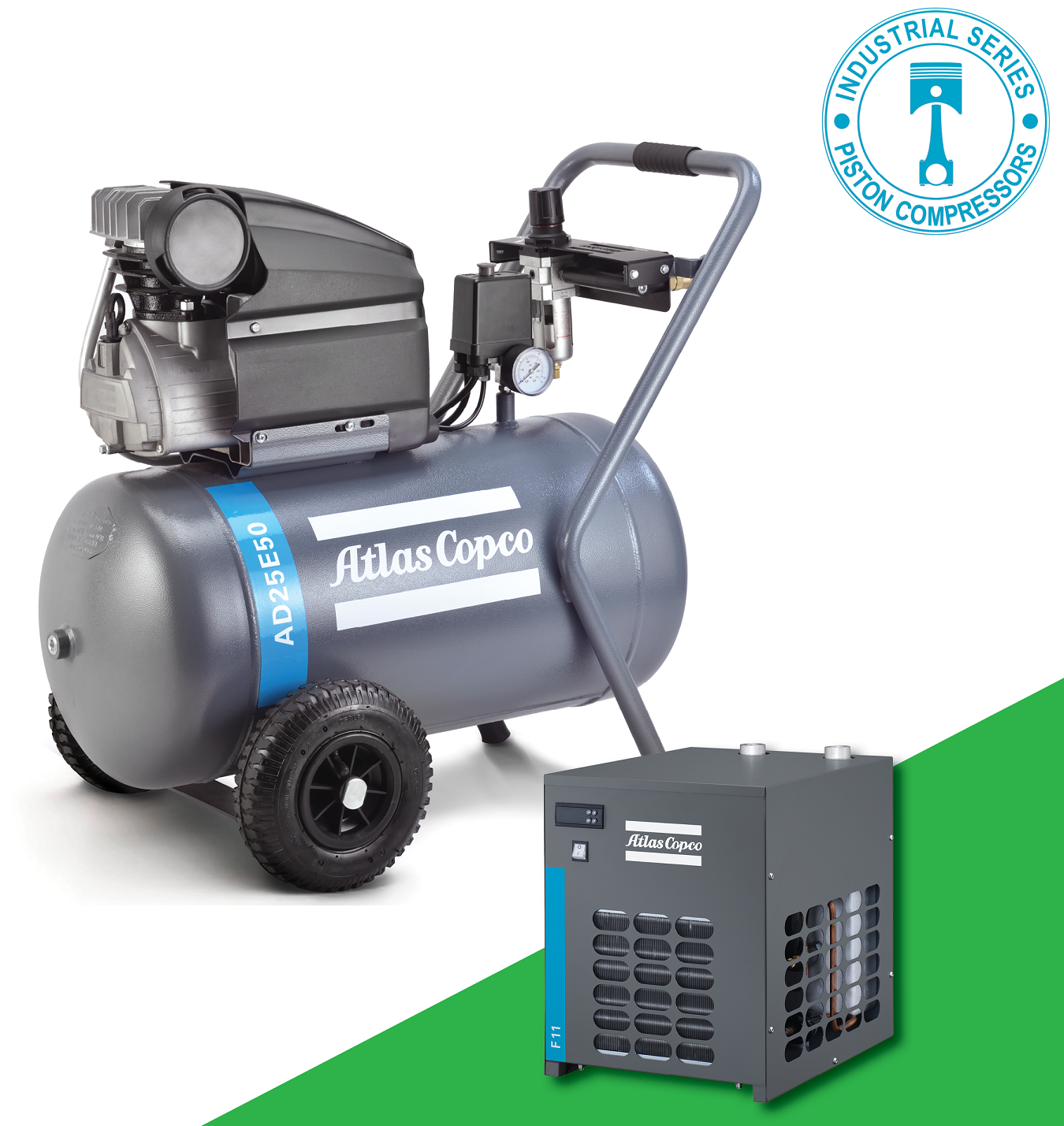

Single Phase Pack Tradesman's 150 LPM 2.5hp (Compressor 25Litre Tank +Dryer +Filter) AD25E24 1129740243-pack

Part number: 1129740243
Model name: AD25E24

• Power: 2.5hp / 1.85kW (240/1/50)
• Max Pressure: 10 bar / 145 psi
• Tank Volume: 24 L  (AS1210 Approved Tank)
• Pump Displacement: 235 l/min
• TRUE Free Air Delivery :148 l/min / 5.3 cfm (Tested as per ACACA Protocol™ 2000  -Australian Commercial Air Compressor Association)
• Current Draw: 8.8 amp
• Noise: 73 dB
• Cylinders/Stages: 1/1
• Motor Speed: 2850 rpm
• Oil: 0.23 L
• Gauge: No
• Dimension (LxWxH) / weight (machine): 670 x 360 x 620 / 27 kg
• Dimension (LxWxH) / weight (package): 665 x 310 x 640 / 30 kg

F SERIES DRYER
The compact & efficient dry air solution Atlas Copco F-series refrigerant dryers keep your compressed air system in optimal shape, removing
humidity efficiently and reliably. With a stable pressure dewpoint as low as 7°C, these compact, low-maintenance dryers are compatible with most compressor technologies and applications.

Specifications:-
Model - F6
Capacity-6 l/s 360l/m (FAD)
Supply- 230V/1Ph/50Hz
Power - 220 W
Max Pressure- 13 Bar
Connection -G3/4""

Key Features:-
- Control panel
-Hot gas bypass valve
-Capillary tube
-Efficient Refrigerant compressor
- Air/air & air/ refrigerant heat exchanger
-Timer drain
-Efficent Refrigerant condenser

IN LINE FILTER
Key Features:
- Maximum oil aerosol, wet dust and water droplet filtration and drainage
- Significant energy savings & limited system operating costs
- High reliability
- Easy maintenance

Part Number/SKU: 1129740243-pack

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
